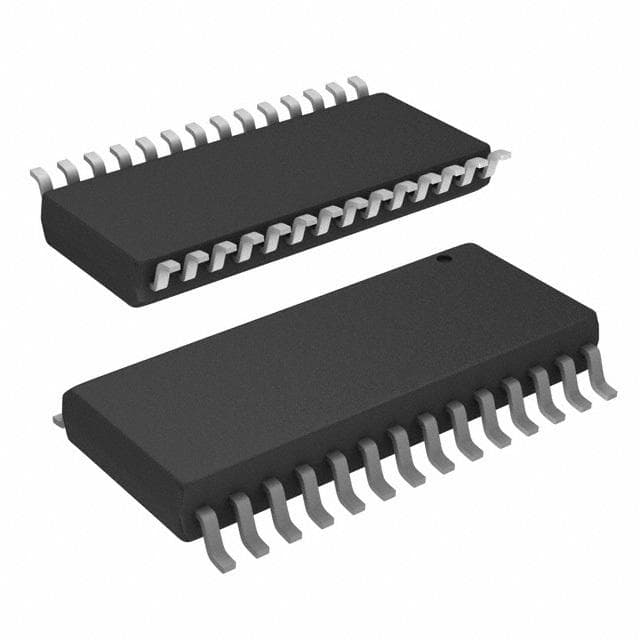

TI DAC813KUG4

Manufacturer No:

DAC813KUG4

Manufacturer:

Package:

SOIC

Description:

DAC Voltage 1.5 B B 2.35mm ?m 7.52mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAC813KUG4 information

TI DAC813KUG4 technical specifications, attributes, parameters and parts with similar specifications to TI DAC813KUG4.

Type
Parameter

Contact Plating
Gold

Package / Case
SOIC

Surface Mount
YES

Number of Pins
28

Weight
730.794007mg

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Converters

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
15V

Pin Count
28

Output Type
Voltage

Polarity
Bipolar, Unipolar

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
16.5V

Min Supply Voltage
11.4V

Power Dissipation-Max
330mW

Nominal Supply Current
13mA

Converter Type
D/A CONVERTER

Supply Type
Dual

Resolution
1.5 B

Sampling Rate
167 ksps

Settling Time
4 ?s

Max Dual Supply Voltage
16.5V

Power Consumption
270mW

Integral Nonlinearity (INL)
0.25 LSB

Min Dual Supply Voltage
11.4V

Input Bit Code
BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

Dual Supply Voltage
15V

Number of Converters
1

Conversion Rate
167 ksps

Negative Supply Voltage-Nom
-15V

Differential Nonlinearity
0.5 LSB

Height
2.35mm

Length
18mm

Width
7.52mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI DAC813KUG4.

DAC813KUG4 Overview

This package is included in the SOIC package and is available for purchase. 15V volts power it. The Other Converters family of FPGAs includes this part. The total number of terminations is 28. The device is designed with 28 pins in total. In this module, 85°C is the maximum operating temperature at which it can operate. Over -40°C, the operating temperature should be higher. The device has a total of 28 pins on it. In addition, it is able to support a maximum supply voltage of 16.5V. The unit is capable of working with a minimum supply voltage of 11.4V.
