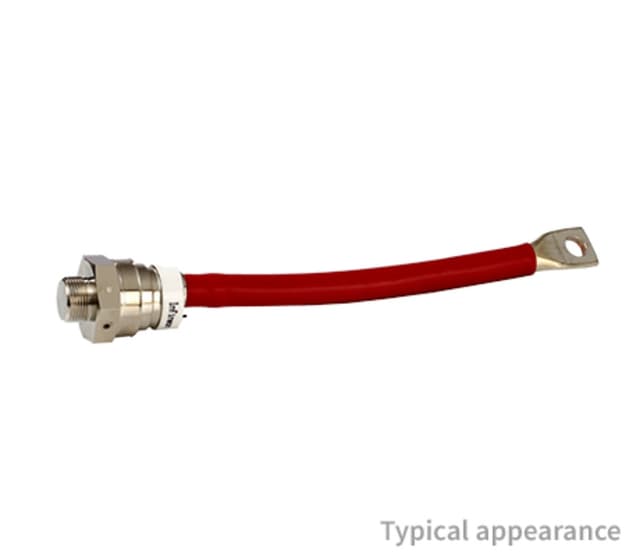

INFINEON D400N12B
INFINEON D400N12B

INFINEON D400N12B

Manufacturer No:

D400N12B

Manufacturer:

INFINEON

Package:

Description:

RECTIFIER DIODE Diode Rectifier 1-Termination

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

D400N12B information

INFINEON D400N12B technical specifications, attributes, parameters and parts with similar specifications to INFINEON D400N12B.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Stud
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Published
  • 2006
  • Part Status
  • Active
  • Number of Terminations
  • 1
  • Max Operating Temperature
  • 180°C
  • Min Operating Temperature
  • -40°C
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Terminal Position
  • UPPER
  • Terminal Form
  • HIGH CURRENT CABLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • O-XUPM-H1
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Diode Type
  • RECTIFIER DIODE
  • Max Surge Current
  • 12.2kA
  • Output Current-Max
  • 450A
  • Application
  • GENERAL PURPOSE
  • Halogen Free
  • Halogen Free
  • Peak Reverse Current
  • 40mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.2kV
  • Peak Non-Repetitive Surge Current
  • 12.2kA
  • Non-rep Pk Forward Current-Max
  • 9700A
  • Reverse Voltage
  • 1.2kV
  • Forward Voltage-Max
  • 1.57V
  • Max Forward Surge Current (Ifsm)
  • 9.8kA
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON D400N12B.

ConflictMineralStatement:

Datasheets:

D400N12B Overview


The reverse voltage should be 1.2kV.This is the maximum amount of 12.2kA surge current that can be used.Output current is maximal at 450A.As the data chart indicates, the peak reverse is 40mA.

D400N12B Features


450A is the maximum value
the peak reverse is 40mA


D400N12B Applications


There are a lot of Infineon
D400N12B applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
