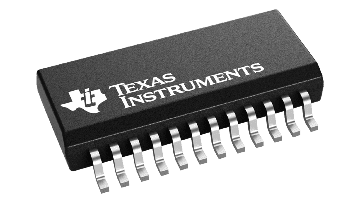

Texas Instruments CY74FCT652CTQCTG4

Manufacturer No:

CY74FCT652CTQCTG4

Manufacturer:

Texas Instruments

Package:

Description:

Octal Bus Transceivers and Registers with 3-State Outputs

Quantity:

In Stock :8836

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Sun, May 10 - Mon, May 11, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

CY74FCT652CTQCTG4 Information

Texas Instruments CY74FCT652CTQCTG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CY74FCT652CTQCTG4.

Type
Parameter

Supply voltage (min) (V)
4.75

Supply voltage (max) (V)
5.25

Number of channels
8

IOL (max) (mA)
64

IOH (max) (mA)
-32

Input type
TTL

Output type
TTL

Features
Partial power down (Ioff), Very high speed (tpd 5-10ns)

Technology family
FCT

Rating
Catalog

Type
Parameter

Operating temperature range (°C)
-40 to 85

Package
SOIC (DW)

Pins
24

Size
159.65 mm² 15.5 x 10.3

Package
SSOP (DBQ)

Pins
24

Size
51.9 mm² 8.65 x 6

REACH Status
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Texas Instruments CY74FCT652CTQCTG4.

The CY74FCT652T consists of bus transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal storage registers. GAB and GBA\ inputs control the transceiver functions. Select-control (SAB and SBA) inputs select either real-time or stored-data transfer. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. A low input level selects real-time data, and a high input level selects stored data.

Data on the A or B data bus, or both, can be stored in the internal D-type flip-flops by low-to-high transitions of the appropriate clock (CPAB or CPBA) inputs, regardless of the select or enable levels of the control pins. When SAB and SBA are in the real-time transfer mode, it also is possible to store data without using the internal D-type flip-flops by simultaneously enabling GAB and GBA\. In this configuration, each output reinforces its input. Thus, when all other data sources to the two sets of bus lines are at high impedance, each set of bus lines remains at its last state.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
