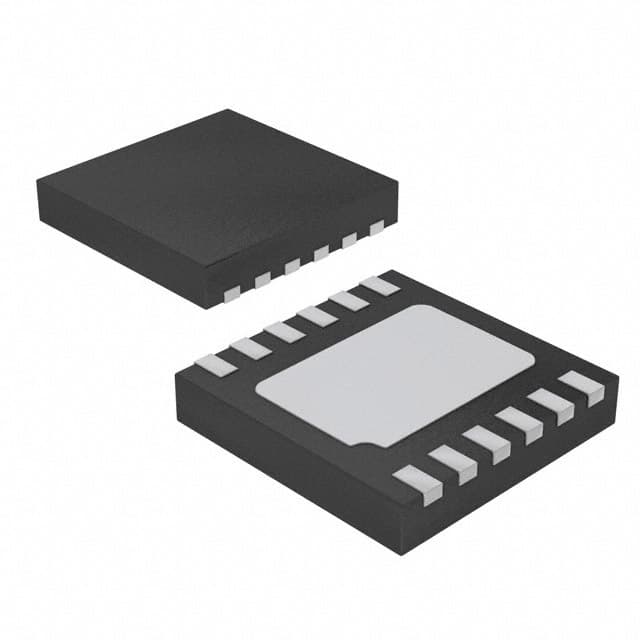

SKYWORKS AAT3685IWP-4.2-T1

Manufacturer No:

AAT3685IWP-4.2-T1

Manufacturer:

SKYWORKS

Package:

12-WFDFN Exposed Pad

Description:

Constant - Programmable 12-WFDFN Exposed Pad Cut Tape (CT) BatteryManager? Series 1A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT3685IWP-4.2-T1 information

SKYWORKS AAT3685IWP-4.2-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT3685IWP-4.2-T1.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-WFDFN Exposed Pad

Number of Pins
12

Operating Temperature
-40°C~85°C TJ

Packaging
Cut Tape (CT)

Series
BatteryManager?

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Max Power Dissipation
2W

Output Voltage
4.2V

Interface
Serial

Max Supply Voltage
5.5V

Min Supply Voltage
4V

Analog IC - Other Type
BATTERY CHARGE CONTROLLER

Operating Supply Current
750?A

Output Current
1A

Fault Protection
Over Temperature, Over Voltage

Battery Chemistry
Lithium Ion/Polymer

Number of Cells
1

Current - Charging
Constant - Programmable

Battery Pack Voltage
4.2V

Radiation Hardening
No

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SKYWORKS AAT3685IWP-4.2-T1.

AAT3685IWP-4.2-T1 Overview

It is included in the Cut Tape (CT) package. It comes as part of the 12-WFDFN Exposed Pad package.The device's mounting type is Surface Mount.To ensure reliable performance, the temperature should be set to -40°C~85°C TJ.This device makes use of an analog IC of BATTERY CHARGE CONTROLLER.Constant - Programmable current is required to charge the device.It is 4.2V for the battery pack.The operation are 12 pins.It is capable of withstanding a 5.5V supply voltage.With a 4.2V output voltage, high efficiency is possible.The output current is set to 1A in this case.It can function at as low a supply voltage as possible, such as 4V.It is mounted in the way of Surface Mount.This electrical component is part of the BatteryManager? series.The gadget's supply current is set to 750?A.

AAT3685IWP-4.2-T1 Features

Battery pack voltage of 4.2V
12-WFDFN Exposed Pad package

AAT3685IWP-4.2-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT3685IWP-4.2-T1 Battery Chargers ICs applications.

Conventional charge
Opportunity charge
Fast charge
Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
