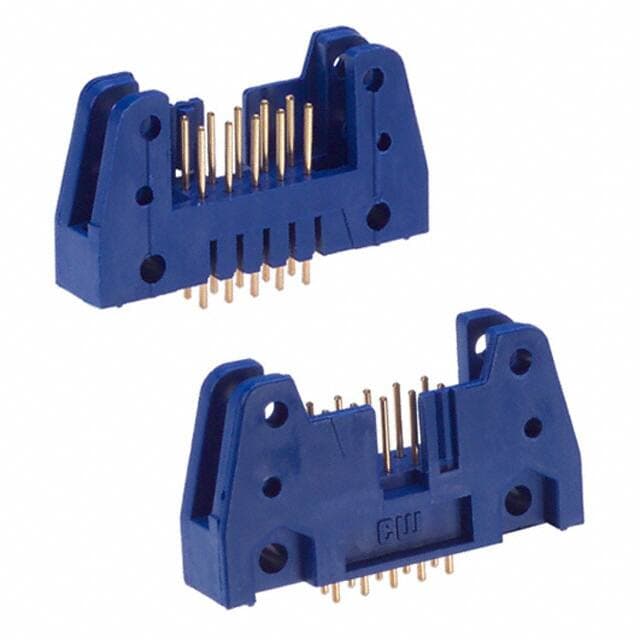

CW Industries CWN-350-10-0000

Manufacturer No:

CWN-350-10-0000

Manufacturer:

CW Industries

Package:

Description:

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Receptacle,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWN-350-10-0000 information

CW Industries CWN-350-10-0000 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWN-350-10-0000.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
CW INDUSTRIES

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.69.40.40

Samacsys Manufacturer
CW Industries

Board Mounting Option
HOLE 0.106

Body Breadth
0.29 inch

Body Depth
0.68 inch

Body Length
1.26 inch

Connector Type
BOARD CONNECTOR

Contact Finish Mating
AU ON NI

Contact Gender
MALE

Contact Material
PHOSPHOR BRONZE

Contact Pattern
RECTANGULAR

Contact Style
RND PIN-SKT

Dielectric Withstanding Voltage
500VDC V

Filter Feature
NO

Insulation Resistance
5000000000 Ω

Insulator Color
BLUE

Insulator Material
POLYETHYLENE

MIL Conformance
YES

Mating Contact Row Spacing
0.1 inch

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Mounting Type
BOARD

Number Of Connectors
ONE

Number Of PCB Rows
2

Number of Rows Loaded
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Option
GENERAL PURPOSE

PCB Contact Pattern
RECTANGULAR

PCB Contact Row Spacing
2.54 mm

Plating Thickness
10u inch

Polarization Key
POLARIZED HOUSING

Rated Current (Signal)
1 A

Reference Standard
CSA; UL

Terminal Length
0.09 inch

Terminal Pitch
2.54 mm

Termination Type
SOLDER

Total Number of Contacts
10

UL Flammability Code
94V-0

Download datasheets and manufacturer documentation for CW Industries CWN-350-10-0000.

Datasheets:

cwindustries-cwn350200000-datasheets-0417.pdf

CWN-350-10-0000 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the CWN Series.Other features include INSERTABLE POLARIZATION, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.

CWN-350-10-0000 Features

CWN series

CWN-350-10-0000 Applications

There are a lot of CW Industries
CWN-350-10-0000 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
