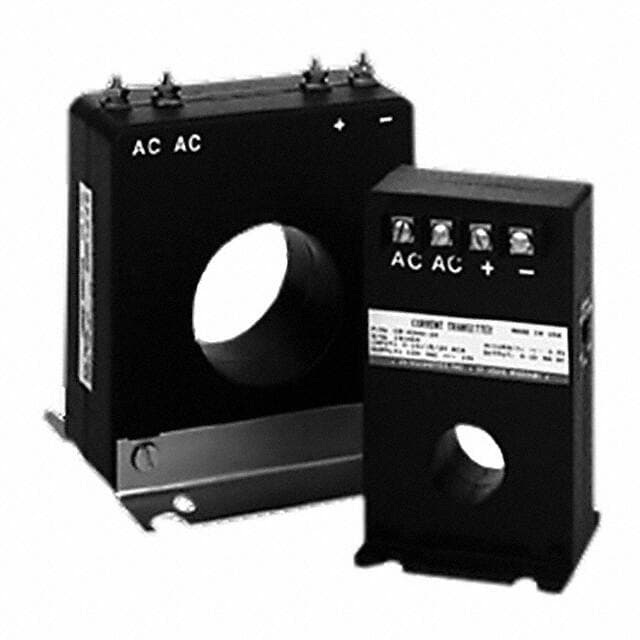

CR Magnetics Inc. CR4340-20
Manufacturer No:
CR4340-20
Manufacturer:
Package:
Module
Description:
Transformer w/Conditioning Sensor 1-Channel Bidirectional -30°C~60°C 120V 50Hz/60Hz 10A 15A 20A Selectable Accuracy-±0.5%
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CR4340-20 information
CR Magnetics Inc. CR4340-20 technical specifications, attributes, parameters and parts with similar specifications to CR Magnetics Inc. CR4340-20.
- Type
- Parameter
- Mount
- DIN Rail, Panel
- Mounting Type
- DIN Rail, Panel
- Package / Case
- Module
- Operating Temperature
- -30°C~60°C
- Packaging
- Bulk
- Published
- 2000
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 2A (4 Weeks)
- Max Operating Temperature
- 60°C
- Min Operating Temperature
- -30°C
- Voltage - Supply
- 120V
- Frequency
- 50Hz/60Hz
- Output
- Ratiometric, 4mA ~ 20mA
- Polarity
- Bidirectional
- Number of Channels
- 1
- Polarization
- Bidirectional
- Accuracy
- ±0.5%
- Response Time
- 150ms
- Sensor Type
- Transformer w/Conditioning
- For Measuring
- AC
- Current - Sensing
- 10A 15A 20A Selectable
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for CR Magnetics Inc. CR4340-20.
CR4340-20 Overview
Safety reasons require that the current sensors be placed in Module packages. In order to protect these current sensors, the Bulk is used to protect them. It is important to make sure these current sensors work at temperatures higher than -30°C. However, the maximum operating temperature for the current sensors should be 60°C.
CR4340-20 Features
Moisture Sensitivity Level: 2A (4 Weeks)
Operating Temperature: -30°C~60°C
1 Channels
Mounting Type: DIN Rail, Panel
Sensor Type: Transformer w/Conditioning
Supply Voltage: 120V
Frequency: 50Hz/60Hz
Sensing Current: 10A 15A 20A Selectable
Module Package
CR4340-20 Applications
There are a lot of CR Magnetics Inc.
CR4340-20 Current Sensors applications.
- Motor and load control
- Inverter and H-bridge current measurements
- Power factor correction
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
