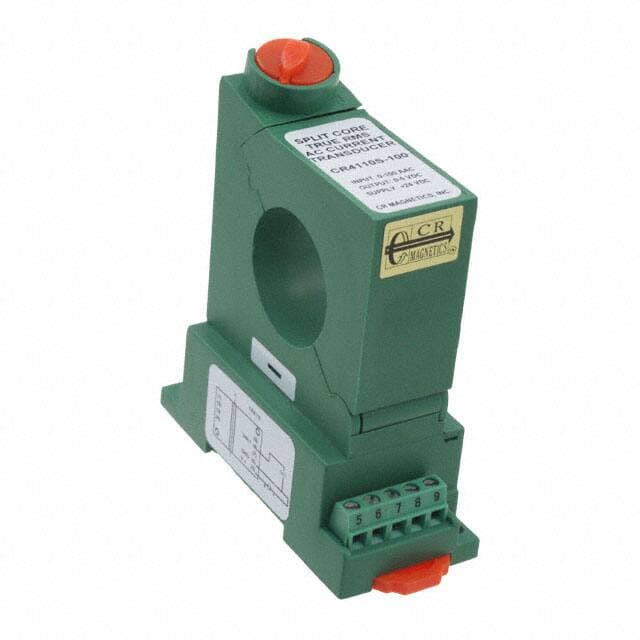

CR Magnetics Inc. CR4110S-100

Manufacturer No:

CR4110S-100

Manufacturer:

CR Magnetics Inc.

Package:

Module

Description:

CR4100 Series Transformer w/Conditioning Sensor 1-Channel Bidirectional 0°C~60°C 24V 20Hz~5kHz 100A Accuracy-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CR4110S-100 information

CR Magnetics Inc. CR4110S-100 technical specifications, attributes, parameters and parts with similar specifications to CR Magnetics Inc. CR4110S-100.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
DIN Rail, Panel

Mounting Type
DIN Rail, Panel

Package / Case
Module

Operating Temperature
0°C~60°C

Packaging
Bulk

Series
CR4100

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
60°C

Min Operating Temperature
0°C

Voltage - Supply
24V

Frequency
20Hz~5kHz

Output
Ratiometric, 0 V ~ 5 V

Current - Supply (Max)
25mA

Polarity
Bidirectional

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
25mA

Accuracy
±0.5%

Response Time
250ms

Sensor Type
Transformer w/Conditioning

For Measuring
AC

Current - Sensing
100A

Download datasheets and manufacturer documentation for CR Magnetics Inc. CR4110S-100.

CR4110S-100 Overview

In order to ensure safety, the current sensors are packaged in Module packages. In order to prevent damage to the devices, these current sensors are packaged in Bulk. In these current sensors, the maximum output current should be 25mA. There should not be an increase in current supplied by current sensors above 25mA. Current sensors must work at a temperature above 0°C. But the maximum operating temperature for current sensors should be set to 60°C.

CR4110S-100 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: 0°C~60°C
1 Channels
Mounting Type: DIN Rail, Panel
Sensor Type: Transformer w/Conditioning
Supply Voltage: 24V
Frequency: 20Hz~5kHz
Sensing Current: 100A
Module Package

CR4110S-100 Applications

There are a lot of CR Magnetics Inc.
CR4110S-100 Current Sensors applications.

Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
AC variabel speed drives and servo motor drives
