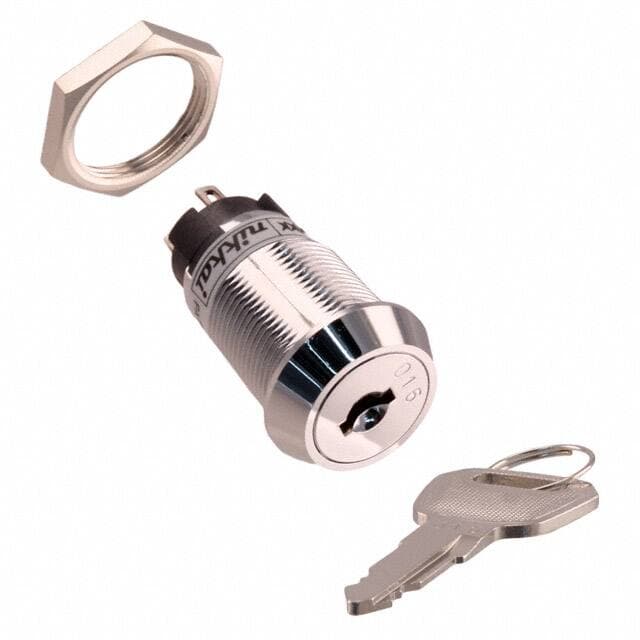

NKK Switches CKL12AFW01

Manufacturer No:

CKL12AFW01

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CKL12AFW01 information

NKK Switches CKL12AFW01 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches CKL12AFW01.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Silver (Ag)

Mount
Panel

Mounting Type
Panel Mount

Material
Brass, Chrome, Metal

Housing Material
Polymer

Operating Temperature
-25°C~70°C

Series
CK

Published
2006

JESD-609 Code
e4

Feature
Epoxy Sealed Terminals

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Number of Positions
2

Current Rating (Amps)
3A AC

Orientation
Vertical

Depth
22mm

Current Rating
3A

Contact Finish
Silver

Termination Style
Solder Lug

Voltage - Rated AC
250V

Circuit
SPDT

Switch Function
On-On

Panel Cutout Dimensions
Circular - 19.00mm Dia

Contact Style
Non-Shorting

Contact Resistance
20mOhm

Insulation Resistance
1GOhm

Max Voltage Rating (AC)
250V

Max Current Rating
3A

Electrical Life
10,000 Cycles

Number of Poles
1

Mechanical Life
30,000 Cycles

Contact Current Rating
3A

Contact Current(AC)-Max
3A

Contact Timing
Non-Shorting (BBM)

Index Angle
90 °

Solderability
HAND

Depth Behind Flange
34.60mm

Key Removable Positions
All

Diameter
22mm

Length
22mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NKK Switches CKL12AFW01.
