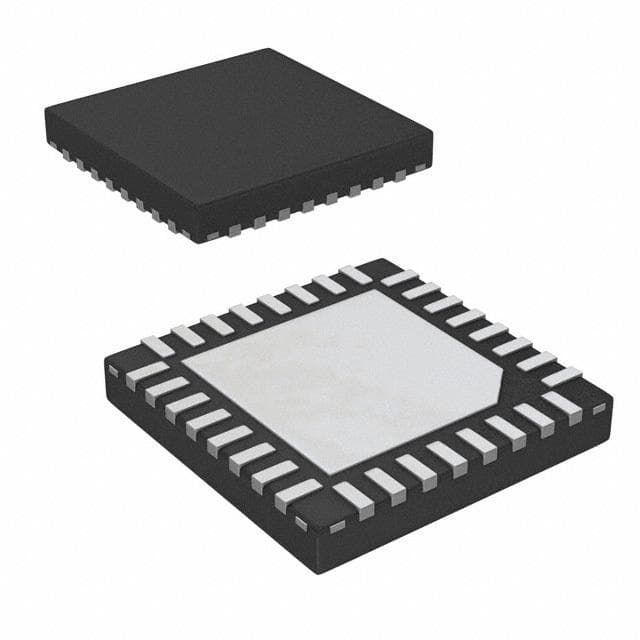

Renesas EL7640ILTZ-T13

Manufacturer No:

EL7640ILTZ-T13

Manufacturer:

Renesas

Package:

Description:

3/5V PMIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7640ILTZ-T13 information

Renesas EL7640ILTZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7640ILTZ-T13.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
3V

Power Supplies
3/5V

Temperature Grade
INDUSTRIAL

Voltage - Output
20V

Input Voltage (Min)
2.6V

Control Mode
CURRENT-MODE

Output Current-Max
3A

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BOOST

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL7640ILTZ-T13.

Datasheets:

intersil-el7640iltzt13-datasheets-0400.pdf

EL7640ILTZ-T13 Overview

Various functions terminate at 32.The reference voltage is coupled with an analog IC SWITCHING REGULATOR.In this case, it is sufficient to generate 1 outputs.There are 32 pins on the voltage reference ic.The temperature should be kept below 260 during the reflow soldering procedure.The voltage reference ic is settled with 32 pins.The voltage reference circuit can be used in a variety of applications as a type of Power Management Circuits.Surface Mount applications are appropriate for the voltage reference.The ambient temperature should not exceed 85°C.Temperatures as low as -40°C degrees Celsius are -40°C problem for it.The output voltage is 20V.A 3/5V power supply is recommended.

EL7640ILTZ-T13 Features

SWITCHING REGULATOR Analog IC
Peak Reflow Temperature: 260

EL7640ILTZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL7640ILTZ-T13 Voltage Reference applications.

Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
Industrial process control systems
