Manufacturer No:

CHF5225CAF500L

Manufacturer:

BOURNS

Package:

Flat Box, Terminator

Description:

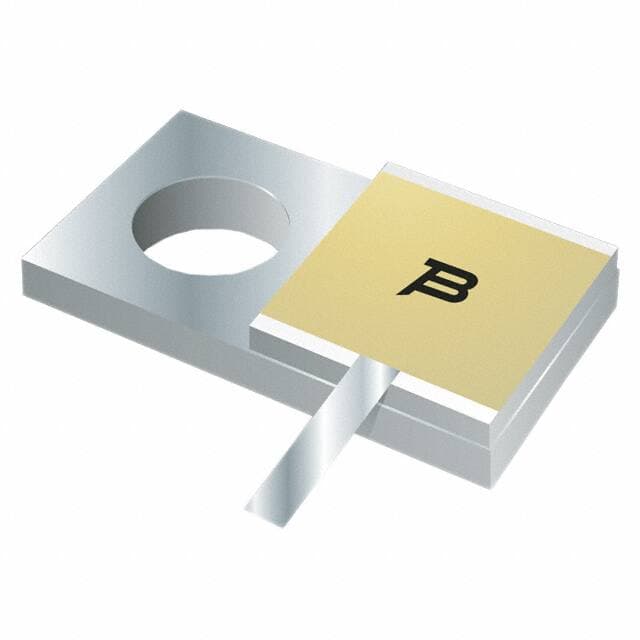

Flange Mount Flat Box, Terminator Bulk Power Module 0Hz~4GHz CHF5225 13.1mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CHF5225CAF500L information

BOURNS CHF5225CAF500L technical specifications, attributes, parameters and parts with similar specifications to BOURNS CHF5225CAF500L.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Flanges
  • Mounting Type
  • Flange Mount
  • Package / Case
  • Flat Box, Terminator
  • Housing Material
  • Aluminium
  • Packaging
  • Bulk
  • Series
  • CHF - RF Power
  • Published
  • 2007
  • Tolerance
  • 5%
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • SMD/SMT
  • Resistance
  • 50Ohm
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Composition
  • Thick Film
  • Power Rating
  • 20W
  • Max Power Dissipation
  • 20W
  • Depth
  • 12.85mm
  • Construction
  • COMPONENT
  • Frequency
  • 0Hz~4GHz
  • Base Part Number
  • CHF5225
  • Military Standard
  • Not
  • Function
  • Power Module
  • RF/Microwave Device Type
  • RF/MICROWAVE TERMINATION
  • VSWR-Max
  • 1.2
  • Input Power-Max (CW)
  • 43.01dBm
  • Height
  • 2.667mm
  • Length
  • 13.1mm
  • Width
  • 6.35mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for BOURNS CHF5225CAF500L.

Datasheets:

ConflictMineralStatement:

CHF5225CAF500L Overview


Based on the frequency of 0Hz~4GHz, RF modulator operates.This RF IC features an enhanced Flat Box, Terminator package .The RF modulator is packaged in a Bulk package.This RF modulator can be placed on any Flange Mount-type PCB or development board.There must be a RF switch IC's temperature below 150°C during operation.There must be at least -55°C minimum operating temperature for this RF switch IC.

CHF5225CAF500L Features


Frequency of 0Hz~4GHz
Flat Box, Terminator package
Bulk


CHF5225CAF500L Applications


There are a lot of Bourns Inc.
CHF5225CAF500L RF Misc ICs and Modules applications.


  • Point-to-point radios
  • VSAT radios
  • Communications test equipmen
  • PA linearization
  • PA predistortion
  • Amplitude modulation
  • Phase modulation
  • Variable matched attenuator
  • Phase shifter
  • Cellular base stations
