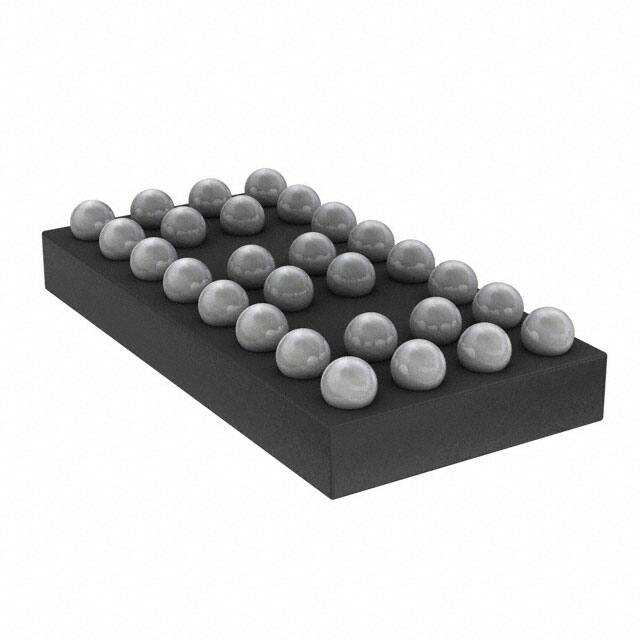

NXP CBTL04GP043EXJ

Manufacturer No:

CBTL04GP043EXJ

Manufacturer:

NXP

Package:

28-XFBGA

Description:

DPDT 15Ohm Analog Switches 28-XFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CBTL04GP043EXJ information

NXP CBTL04GP043EXJ technical specifications, attributes, parameters and parts with similar specifications to NXP CBTL04GP043EXJ.

Type
Parameter

Factory Lead Time
7 Weeks

Mounting Type
Surface Mount

Package / Case
28-XFBGA

Operating Temperature
-20°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2010

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Circuits
2

-3db Bandwidth
8.5GHz

On-State Resistance (Max)
15Ohm

Multiplexer/Demultiplexer Circuit
2:2

Channel Capacitance (CS(off), CD(off))
3pF

Switch Circuit
DPDT

Voltage - Supply, Single (V+)
2.7V~3.5V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP CBTL04GP043EXJ.

PCN Obsolescence/ EOL:

nxpusainc-mmg3015nt1-pcnobsolescenceeol-8636.pdf

CBTL04GP043EXJ Overview

The electronic component is convenient to ship overseas because it is packed in a 28-XFBGA. The advanced packaging method Tape & Reel (TR) provides high reliability. It is mounted in the position Surface Mount. 2:2 is the ratio between multiplexers and demultiplexers. The operating temperature is extended to around -20°C~85°C TA. Based on DPDT switching circuits, these analog multiplexers work. The multiplexer consists of 2 circuits. Using only a single voltage supply, this analog switch requires 2.7V~3.5V voltage.

CBTL04GP043EXJ Features

Switch Circuit: DPDT
-3db Bandwidth: 8.5GHz

CBTL04GP043EXJ Applications

There are a lot of NXP USA Inc.
CBTL04GP043EXJ Analog Switches & Multiplexers ICs applications.

Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
