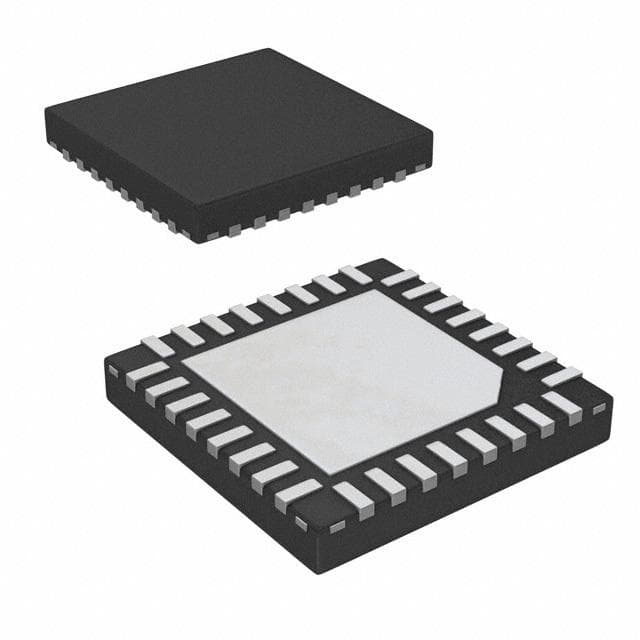

Renesas EL7642AILTZ-T13

Manufacturer No:

EL7642AILTZ-T13

Manufacturer:

Renesas

Package:

QFN

Description:

20V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7642AILTZ-T13 information

Renesas EL7642AILTZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7642AILTZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
7

Operating Supply Voltage
5.5V

Input Voltage-Nom
3V

Power Supplies
3/5V

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Output
20V

Min Input Voltage
2.6V

Control Mode
CURRENT-MODE

Output Current-Max
0.15A

Frequency - Switching
1.35MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
10mA

Switcher Configuration
BOOST

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas EL7642AILTZ-T13.

Datasheets:

intersil-el7642ailtzt13-datasheets-1787.pdf

EL7642AILTZ-T13 Overview

There are a total of 7 outputs supported by the voltage regulator. The rectifier regulator is packaged in QFN for ease of transportation. The general voltage output of this power supply regulator is 20V. It is possible to find 32terminals on the voltage regulator. This electronic part is highly regarded as a SWITCHING REGULATOR regulator. The rectifier regulator's pinout begins with 32pins. A Surface Mount is provided for mounting on PCBs or other boards. There are 32 pins on the power regulator. The voltage controller, as well as other Power Management Circuits play a vital role in the industry. It is not suitable for temperatures below -40°C. It is not recommended to exceed 85°C in temperature. The operating supply voltage for normal operation should be 5.5V. A voltage greater than 2.6Vis required for this rectifier regulator. At maximum, it outputs current 0.15A. The switching frequency of this AC voltage regulator is 1.35MHz.

EL7642AILTZ-T13 Features

SWITCHING REGULATOR analog IC
Supply voltage: 5.5V
Switching at 1.35MHz

EL7642AILTZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL7642AILTZ-T13 Specialized Voltage Regulators applications.

Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
