Manufacturer No:

CAT4101TV

Manufacturer:

ONSEMI

Package:

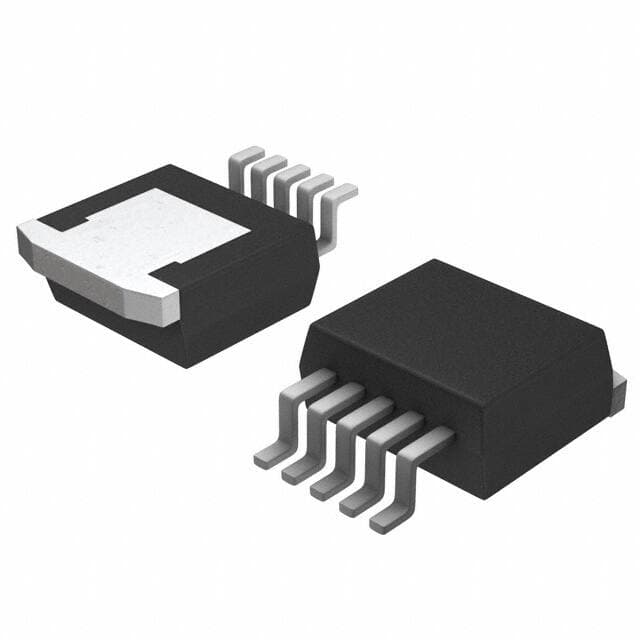

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Description:

3.3/5V PMIC CAT4101 5V TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT4101TV information

ONSEMI CAT4101TV technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT4101TV.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 5
  • ECCN Code
  • EAR99
  • Type
  • Linear
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • Lighting
  • Subcategory
  • Display Drivers
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 245
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Reach Compliance Code
  • compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • CAT4101
  • Pin Count
  • 5
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 3.3/5V
  • Voltage - Output
  • 25V
  • Current - Output / Channel
  • 1A
  • Internal Switch(s)
  • Yes
  • Dimming
  • PWM
  • Number of Segments
  • 1
  • Voltage - Supply (Max)
  • 5.5V
  • Voltage - Supply (Min)
  • 3V
  • Multiplexed Display Capability
  • NO
  • Height Seated (Max)
  • 4.8mm
  • Width
  • 9mm

Download datasheets and manufacturer documentation for ONSEMI CAT4101TV.

Datasheets:

CAT4101TV Overview


Using its TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package, it is possible to save board space. LED drivers design with 1 outputs.This mounting method is Surface Mount.The system emerges as a Linear with high efficiency.It is capable of working normally at -40°C~85°C TA.Lighting has considerable advantages.The operation of this system is supported by 5 terminations.It is possible that failures will occur if the voltage supply is below 3V.1 segments are present.The LED driver is available under the part number CAT4101.Its output voltage is 25V.The device has a pin count of 5.The voltage range of this device is optimized for a maximum supply voltage of 5.5V.In addition to Display Drivers, it is also classified by its characteristics.

CAT4101TV Features


Available in the TO-263-6, D2Pak (5 Leads + Tab), TO-263BA package
Operating temperature of -40°C~85°C TA
Supply voltage of 5V


CAT4101TV Applications


There are a lot of ON Semiconductor
CAT4101TV LED Driver ICs applications.


  • Gallery lighting
  • Museum lighting
  • High-end retail lighting
  • Medical surgery lighting
  • Replacement lamps
  • Panel lighting
  • Down lights
  • Linear fluorescent
  • A- lamps
  • General LED Lighting: Down-lights, Base-lights, Ceiling Lights, Exterior Lights
