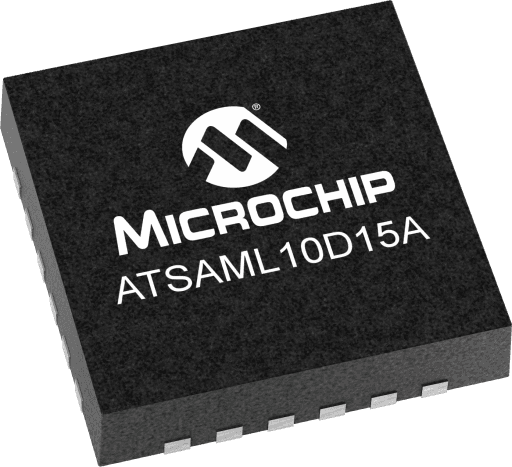

Microchip ATSAML10D15A-YFT
Microchip ATSAML10D15A-YFTMicrochip ATSAML10D15A-YFTMicrochip ATSAML10D15A-YFT

Microchip ATSAML10D15A-YFT

Manufacturer No:

ATSAML10D15A-YFT

Manufacturer:

Microchip

Package:

24-SSOP (0.209, 5.30mm Width)

Description:

Ultra-Low Power 32-bit MCU, enhanced touch, advanced analog and serial interfaces

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAML10D15A-YFT information

Microchip ATSAML10D15A-YFT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAML10D15A-YFT.

  • Type
  • Parameter
  • Part Family
  • SAM L10
  • CPU Type
  • Cortex-M23
  • MaxSpeed (MHz)
  • 32
  • Program Memory Size (KB)
  • 32
  • SRAM (KB)
  • 8
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 125
  • Operation Voltage Min.(V)
  • 1.62
  • Operation Voltage Max.(V)
  • 3.63
  • SPI
  • 2
  • I2C
  • 2
  • UART
  • 2
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 32Khz ULP, 16Mhz
  • Pin Count
  • 24

Download datasheets and manufacturer documentation for Microchip ATSAML10D15A-YFT.

Data Sheets:

Application Notes:

Brochures:

User Guide:

Supporting Collateral:

Tech Brief:

Legacy Collaterals:

Errata:

Industry’s first and lowest power Arm® Cortex®-M23 MCU consuming less than 25 uA/MHz in active mode and less than 100 nA in sleep mode. It features enhanced peripheral touch controller, advanced analog, ISO7816 smart card interface, event system and SleepWalking peripherals.

SAM L10 achieved EEMBC Certified ULPMark Core Profile score of 396 & Peripheral Profile score of 166

Supported by MPLAB X IDE and MPLAB Harmony.



    Processor:
  • ARM Cortex®-M23
  • 32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
  • Single-cycle hardware multiplier
  • Hardware divider
  • Nested Vector Interrupt Controller (NVIC)
  • Memory Protection Unit (MPU)
    Operating Voltage Range:
  • 1.62V to 3.63V
    Memory:
  • 32 KB Flash
  • 8 KB SRAM
  • 2 KB Data Flash section for non-volatile data storage
  • 256 bytes TrustRAM with physical protection features
    Ultra-Low Power:
  • Active, Idle, Standby with partial or full SRAM retention and off sleep modes
  • Active mode (< 25 μA/MHz)
  • Idle mode (< 10 μA/MHz) with 1.5 μs wake-up time
  • Standby with Full SRAM Retention (0.5 μA) with 5.3 μs wake-up time
  • Off mode (< 100 nA)
    Enhanced Peripheral Touch Controller (PTC):
  • Driven Shield Plus for moisture tolerance and noise immunity
  • Parallel Acquisition through Polarity control
  • Supports wake-up on touch from Standby Sleep mode
    Advanced Analog:
  • 12-bit, 1 MSPS Analog-to-Digital Converter (ADC)
  • Analog Comparators (AC) with window compare function
  • 10-bit, 350 KSPS DAC with external and internal outputs
  • Operational Amplifiers
    Serial Communication Interfaces (SERCOM) that can operate as:
  • USART, I2C, SPI
    Qualification and Class-B Support:
  • AEC-Q100 REVH (Grade 1 [-40ºC to +125ºC]) (planned)
  • Class-B safety library, IEC 60730 (planned)
    Temperature options:
  • -40 C to 85 C
  • -40 C to 125 C
    Debugger Development Support:
  • Two-pin Serial Wire Debug (SWD) programming and debugging interface

User Guide
