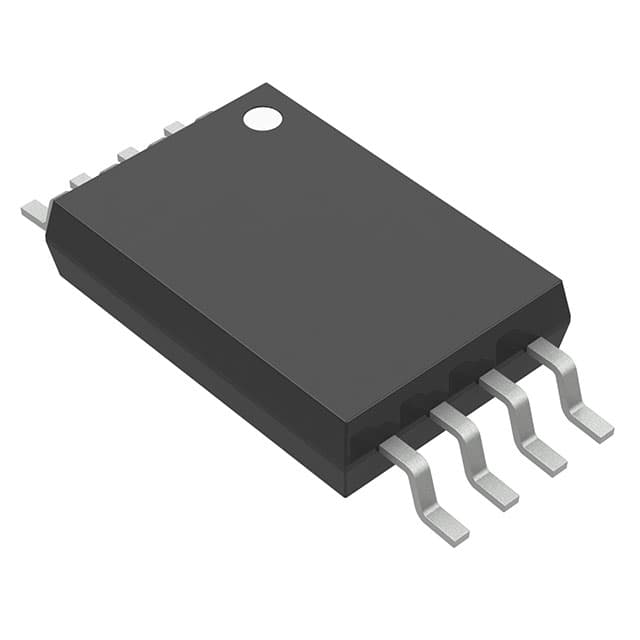

ONSEMI CAT34C02YI-GT5A
ONSEMI CAT34C02YI-GT5A

ONSEMI CAT34C02YI-GT5A

Manufacturer No:

CAT34C02YI-GT5A

Manufacturer:

ONSEMI

Package:

8-TSSOP (0.173, 4.40mm Width)

Description:

EEPROM Serial 2-Kb SPD for DDR2 DIMM

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT34C02YI-GT5A information

ONSEMI CAT34C02YI-GT5A technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT34C02YI-GT5A.

  • Type
  • Parameter
  • MSL Temp (°C)
  • 260
  • Organization
  • 256 x 8
  • Data Transmission Standard
  • I2C
  • fcycle Max (kHz)
  • 400
  • Iact Max (mA)
  • 1
  • T Max (°C)
  • 85
  • Specific Features
  • -
  • Container Type
  • REEL
  • Container Qty.
  • 5000
  • Type
  • Serial
  • Density
  • 2 kb
  • Vio Ref (V)
  • -
  • Istandby Max (µA)
  • 1
  • T Min (°C)
  • -40
  • Package Type
  • TSSOP-8
  • Case Outline
  • 948AL
  • MSL Type
  • 1
  • tACC Max ns
  • 900
  • VCC Max (V)
  • 5.5
  • VCC Min (V)
  • 1.7
  • Endurance (Write cycles)
  • -

Download datasheets and manufacturer documentation for ONSEMI CAT34C02YI-GT5A.

Datasheet:

Package Drawing:

The CAT34C02 is a EEPROM Serial 2-Kb SPD for DDR2 DIMM, internally organized as 16 pages of 16 bytes each, for a total of 256 bytes of 8 bits each.It features a 16-byte page write buffer and supports both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol.Write operations can be inhibited by taking the WP pin High (this protects the entire memory) or by setting an internal Write Protect flag via Software command (this protects the lower half of the memory).In addition to Permanent Software Write Protection, the CAT34C02 also features JEDEC compatible Reversible Software Write Protection for DDR2 Serial Presence Detect (SPD) applications operating over the 1.7 V to 3.6 V supply voltage range.The CAT34C02 is fully backwards compatible with earlier DDR1 SPD applications operating over the 1.7 V to 5.5 V supply voltage range.

End Product

  • Disk drives
  • Modems

Feature

  • Supports Standard and Fast I2C Protocol
  • 1.7 V to 5.5 V Supply Voltage Range
  • 16-Byte Page Write Buffer
  • Hardware Write Protection for Entire Memory
  • Software Write Protection for Lower 128 Bytes
  • Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
  • Low Power CMOS Technology
  • 1,000,000 Program/Erase Cycles
  • 100 Year Data Retention
  • Industrial Temperature Range
  • This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant
