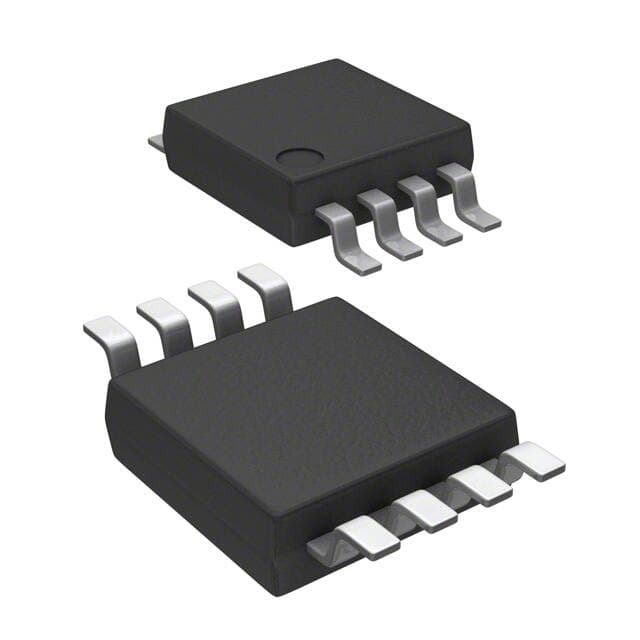

ROHM BR93G56FVM-3GTTR

Manufacturer No:

BR93G56FVM-3GTTR

Manufacturer:

ROHM

Package:

8-VSSOP, 8-MSOP (0.110, 2.80mm Width)

Description:

Surface Mount Memory IC BR93G56 2 kb kb 2.9mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BR93G56FVM-3GTTR information

ROHM BR93G56FVM-3GTTR technical specifications, attributes, parameters and parts with similar specifications to ROHM BR93G56FVM-3GTTR.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-VSSOP, 8-MSOP (0.110, 2.80mm Width)

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Additional Feature
ALSO AVAILABLE 1.7V-2.5V OPERATES WITH 1MHZ, 2.5V-4.5V OPERATES WITH 2MHZ

Technology
CMOS

Voltage - Supply
1.7V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
BR93G56

JESD-30 Code
R-PDSO-G8

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
4.5V

Memory Size
2Kb 256 x 8 128 x 16

Memory Type
Non-Volatile

Operating Mode
SYNCHRONOUS

Clock Frequency
3MHz

Access Time
200 ns

Memory Format
EEPROM

Memory Interface
SPI

Organization
128X16

Memory Width
16

Write Cycle Time - Word, Page
5ms

Density
2 kb

Serial Bus Type
3-WIRE

Write Cycle Time-Max (tWC)
5ms

Alternate Memory Width
8

Length
2.9mm

Height Seated (Max)
0.9mm

Width
2.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BR93G56FVM-3GTTR.

BR93G56FVM-3GTTR Overview

In this case, the memory type of the device can be classified as Non-Volatile. Case Tape & Reel (TR) is available. An embedded 8-VSSOP, 8-MSOP (0.110, 2.80mm Width) case surrounds memory ics. It is estimated that the memory size on the chip is 2Kb 256 x 8 128 x 16. As with most mainstream devices, this one uses EEPROM-format memory. Due to its wide temperature range of -40°C~85°C TA, this device is well suited to a wide range of applications that require high performance. With 1.7V~5.5V as the supply voltage, it is capable of handling memory ics. It is recommended to mount it in the Surface Mount mounting type. It is planted on the chip with 8 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 5V to be supplied to this ic memory chip in order to operate. In order to operate effectively, the memory rotates at a clock frequency within a range of 3MHz. A device's base part number, BR93G56, is often used in order to identify similar components. This chip uses Surface Mount mounting, a straightforward, high-efficiency method of mounting. This chip is not only loaded with advantages, but it also comes with ALSO AVAILABLE 1.7V-2.5V OPERATES WITH 1MHZ, 2.5V-4.5V OPERATES WITH 2MHZ, which boosts the performance of your system. It is helpful to carry data to the CPU using the 3-WIRE-type serial bus that this memory integrates with.

BR93G56FVM-3GTTR Features

Package / Case: 8-VSSOP, 8-MSOP (0.110, 2.80mm Width)
Additional Feature:ALSO AVAILABLE 1.7V-2.5V OPERATES WITH 1MHZ, 2.5V-4.5V OPERATES WITH 2MHZ

BR93G56FVM-3GTTR Applications

There are a lot of ROHM Semiconductor
BR93G56FVM-3GTTR Memory applications.

networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
