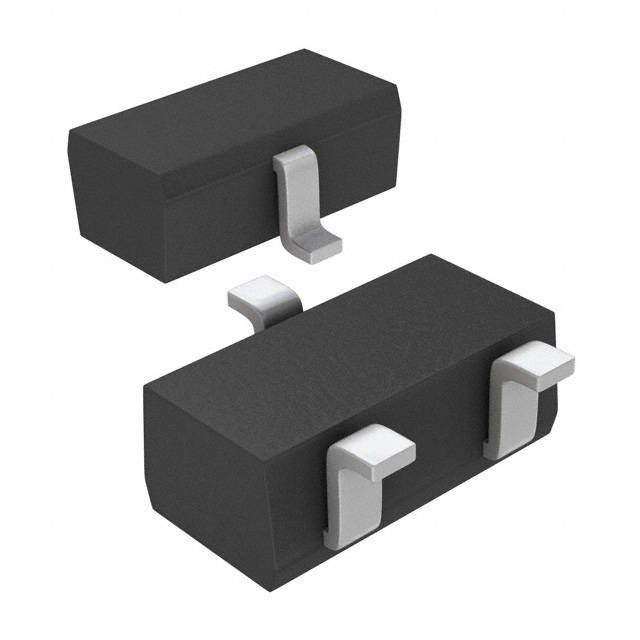

ROHM Semiconductor DAP202KT146

Manufacturer No:

DAP202KT146

Manufacturer:

ROHM Semiconductor

Package:

SC-59, 3 PIN

Description:

Description: Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, SC-59, 3 PIN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAP202KT146 information

ROHM Semiconductor DAP202KT146 technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor DAP202KT146.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROHM CO LTD

Part Package Code
SC-59

Package Description
SC-59, 3 PIN

Pin Count
3

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.70

Factory Lead Time
24 Weeks, 4 Days

Date Of Intro
1993-01-01

Samacsys Manufacturer
ROHM Semiconductor

Additional Feature
HIGH RELIABILITY

Application
GENERAL PURPOSE

Configuration
COMMON ANODE, 2 ELEMENTS

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.2 V

JESD-30 Code
R-PDSO-G3

JESD-609 Code
e1

Moisture Sensitivity Level
1

Non-rep Pk Forward Current-Max
4 A

Number of Elements
2

Operating Temperature-Max
150 °C

Output Current-Max
0.1 A

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
LONG FORM

Peak Reflow Temperature (Cel)
260

Power Dissipation-Max
0.2 W

Qualification Status
Not Qualified

Rep Pk Reverse Voltage-Max
80 V

Reverse Current-Max
0.1 µA

Reverse Recovery Time-Max
0.004 µs

Surface Mount
YES

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
GULL WING

Terminal Position
AXIAL

Time@Peak Reflow Temperature-Max (s)
10

Download datasheets and manufacturer documentation for ROHM Semiconductor DAP202KT146.

Datasheets:

rohmsemiconductor-dap202kt146-datasheets-0673.pdf

DAP202KT146 Overview

The device operates when the forward voltage is set to 1.2V.A maximum output voltage of 0.1A is supported by array.Array should be a rule to monArrayor the surge current and not allow Array to exceed 4A.The device operates when the forward voltage is set to 100mA.There can be a current drawn from this part of 100mA.Typical devices like this one are powered by reverse voltage peaks of 100nA.The maximum reverse leakage current from this semiconductor is 100nA, which corresponds to the reverse leakage current from that device when reverse biased.By virtue of its primary function, this electronic or electrical device generates 200mW kcal of heat (energy loss).In electronic or electrical devices, this is the device that produces the most 200mW heat (energy loss or waste).
