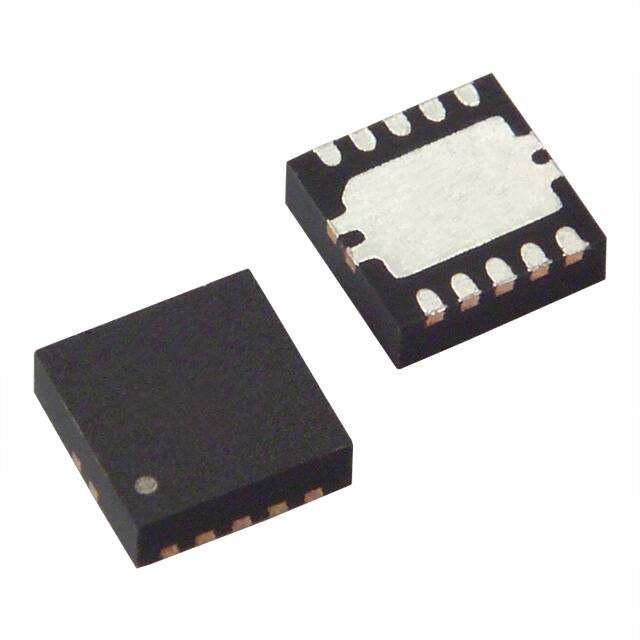

TI BQ24083DRCR

Manufacturer No:

BQ24083DRCR

Manufacturer:

Package:

10-VFDFN Exposed Pad

Description:

Constant - Programmable BQ24083 10-VFDFN Exposed Pad Tape & Reel (TR) 1A 10 Terminals 10 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BQ24083DRCR information

TI BQ24083DRCR technical specifications, attributes, parameters and parts with similar specifications to TI BQ24083DRCR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 6 days ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mounting Type
Surface Mount

Package / Case
10-VFDFN Exposed Pad

Surface Mount
YES

Number of Pins
10

Weight
26.109911mg

Operating Temperature
0°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
10

ECCN Code
EAR99

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
BQ24083

Qualification Status
Not Qualified

Output Voltage
4.2V

Number of Channels
1

Max Supply Voltage
6.5V

Min Supply Voltage
4.5V

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Output Current
1A

Adjustable Threshold
YES

Min Input Voltage
4.06V

Supply Current-Max (Isup)
2mA

Nominal Input Voltage
6.5V

Battery Chemistry
Lithium Ion/Polymer

Number of Cells
1

Programmable Features
Current, Timer

Current - Charging
Constant - Programmable

Battery Pack Voltage
4.2V

Height
1mm

Length
3mm

Width
3mm

Thickness
900?m

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI BQ24083DRCR.

PCN Assembly/Origin:

texasinstruments-tps65040zqer-pcnassemblyorigin-8948.pdf

Datasheets:

texasinstruments-bq24083drcr-datasheets-4978.pdf

BQ24083DRCR Overview

There is a package Tape & Reel (TR) available.There is a 10-VFDFN Exposed Pad package included with this item that you will need to take care of.A mounting type of Surface Mount has been specified for this device.The best way to adjust the temperature is to set it to 0°C~125°C TJ.To operate the device, an analog IC called POWER SUPPLY MANAGEMENT CIRCUIT is used.Charge the device by supplying it with Constant - Programmable current.This device's related parts can be found under the base part number BQ24083.10 terminations are present.4.2V is the voltage for the battery pack.Due to the 10 pins on it, it is a very simple circuit.It is possible to program features such as Current, Timer.It is necessary to connect the 10 pins during the installation process of this product.There are a total of 1 channels available for use in this application.Withstanding a voltage of 6.5V, it is a reliable piece of equipment.Ideally, when the output voltage of the device is set to 4.2V, you will be able to achieve the highest degree of efficiency.When the operation is completed, the output current is 1A.Devices belonging to subcategory Power Management Circuits include this device.It is capable of functioning at a voltage as low as possible, for example 4.5V voltage for this circuit is used.In most cases, the maximum supply voltage (Vsup) is set to 2mA.Input voltage is limited to 4.06V volts at the lowest.

BQ24083DRCR Features

Battery pack voltage of 4.2V
1 channels
Power Management Circuits subcategory
10-VFDFN Exposed Pad package

BQ24083DRCR Applications

There are a lot of Texas Instruments
BQ24083DRCR Battery Chargers ICs applications.

Maintenance shops
Rental fleets
Truck dealers
Floor scrubber
Material handling
Man lift
Boat
Cellphones
Laptops
Tablets
