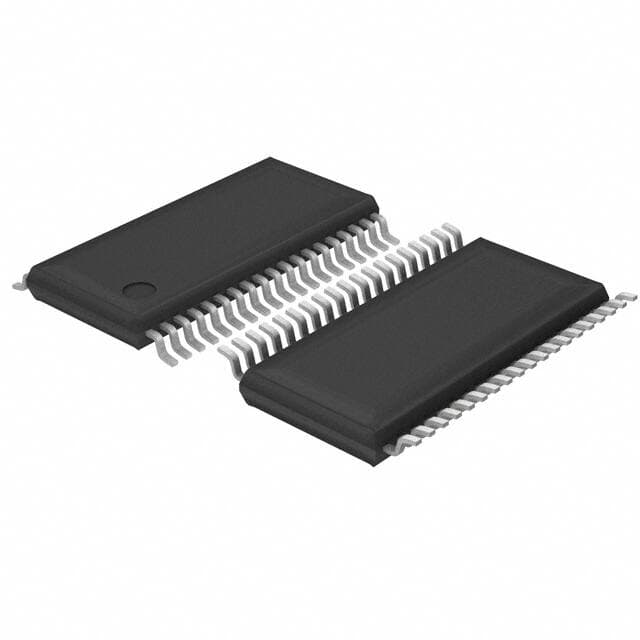

TI BQ20Z75DBTR

Manufacturer No:

BQ20Z75DBTR

Manufacturer:

Package:

38-TFSOP (0.173, 4.40mm Width)

Description:

-40°C~85°C TA 1 Channel DUAL Battery Management ICs 14V BQ20Z75 38 Pins 2 ~ 4 Cell Lithium Ion/Polymer 38-TFSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BQ20Z75DBTR information

TI BQ20Z75DBTR technical specifications, attributes, parameters and parts with similar specifications to TI BQ20Z75DBTR.

Type
Parameter

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
38-TFSOP (0.173, 4.40mm Width)

Number of Pins
38

Weight
124.000814mg

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
Impedance Track?

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
38

ECCN Code
EAR99

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
14V

Terminal Pitch
0.5mm

Base Part Number
BQ20Z75

Function
Multi-Function Controller

Number of Channels
1

Interface
SMBus

Max Supply Voltage
25V

Min Supply Voltage
4.5V

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Output Current
100mA

Adjustable Threshold
NO

Fault Protection
Over Current, Over Temperature, Over/Under Voltage, Short Circuit

Battery Chemistry
Lithium Ion/Polymer

Number of Cells
2 ~ 4

Length
7.8mm

Height Seated (Max)
1.2mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI BQ20Z75DBTR.

BQ20Z75DBTR Overview

38-TFSOP (0.173, 4.40mm Width) is the appropriate package for battery instrument. Analog IC POWER SUPPLY MANAGEMENT CIRCUIT is used in this power IC. The number of channels available is 1. In total, it has 38 pins. The case is labeled Tape & Reel (TR). For mounting, use Surface Mount. There should be a minimum supply voltage of 4.5V volts for this electrical part. The Power Management Circuits family of electrical components includes this component. In Surface Mount, this electronic component is mounted. A voltage of 25V volts is recommended for this power IC. It is capable of delivering the Multi-Function Controller functions. This electric part performs best at temperatures in the range of -40°C~85°C TA. There is Lithium Ion/Polymer in the battery chemistry of this electronic component. It is important to keep this battery management IC set to 14V at all times. The family BQ20Z75 is the basis for it. The number Impedance Track? corresponds to the series of the battery protector ic. It is possible to supply the battery management IC with a maximum current of 100mA.
