TI LM236AH-5.0

Manufacturer No:

LM236AH-5.0

Manufacturer:

Package:

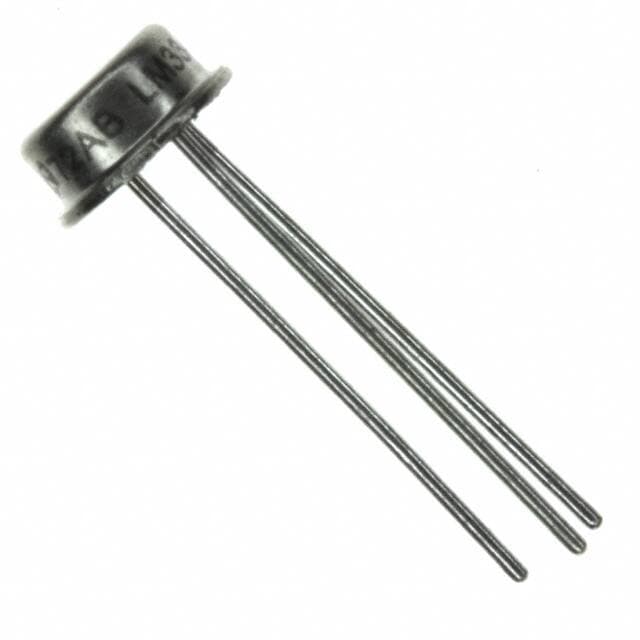

TO-206AB, TO-46-3 Metal Can

Description:

-25°C~85°C TA Fixed PMIC LM236 1 Channel TO-206AB, TO-46-3 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM236AH-5.0 information

TI LM236AH-5.0 technical specifications, attributes, parameters and parts with similar specifications to TI LM236AH-5.0.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-206AB, TO-46-3 Metal Can

Number of Pins
3

Operating Temperature
-25°C~85°C TA

Packaging
Bulk

Tolerance
±1%

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
20 ppm/°C

Additional Feature
ADJUSTABLE FROM 4V TO 6V

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Number of Functions
1

Base Part Number
LM236

Pin Count
3

Number of Outputs
1

Output Voltage
5V

Output Type
Fixed

Number of Channels
1

Trim/Adjustable Output
YES

Analog IC - Other Type
TWO TERMINAL VOLTAGE REFERENCE

Reference Type
Shunt

Min Output Voltage
5V

Current - Cathode
600?A

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI LM236AH-5.0.

LM236AH-5.0 Overview

This program utilizes the handy TO-206AB, TO-46-3 Metal Can package.This part serves as a voltage reference and is controlled by a Shunt signal.There is an external packaging of Bulk.With 3, different functions are terminated.Precision voltage measurements require ±1% tolerance.Connected to the part is an analog integrated circuit (IC).An output voltage of 5V is determined based on test statistics.It is sufficient to output 1.Fixed forms are provided for user input.A part with 3 pins is included.Pins 3 are firmly seated in the part.Use of Through Hole can increase the complexity of the PCB design.-25°C~85°C TA is suitable for work within this range.Being a type Voltage References, the voltage reference circuit has many applications.There are other relevant parts if you search for "LM236".Through Hole is the right platform for the application.There is 10mA way the reference voltage can output more current than 10mA in this case.Communication channels of high quality are currently unavailable.Cathode currents of 600?A are generally considered to be correct.The lowest voltage output of the voltage reference ic is 5V.For better effectiveness, it has ADJUSTABLE FROM 4V TO 6V.

LM236AH-5.0 Features

±1% Tolerance
TWO TERMINAL VOLTAGE REFERENCE Analog IC
Channel Number: 1

LM236AH-5.0 Applications

There are a lot of Texas Instruments
LM236AH-5.0 Voltage Reference applications.

Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
and Digital-to-Analog Converters
High-Accuracy Reference Standard

User Guide
