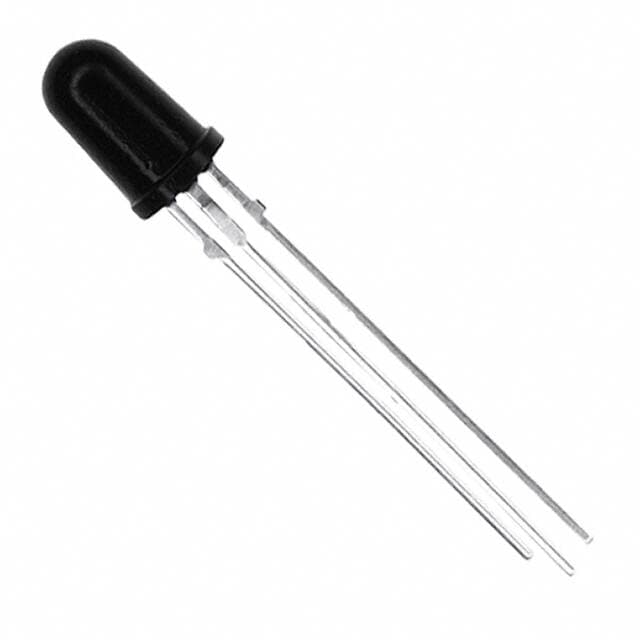

Vishay BPV11F

Manufacturer No:

BPV11F

Manufacturer:

Vishay

Package:

Radial, 5mm Dia (T 1 3/4)

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BPV11F information

Vishay BPV11F technical specifications, attributes, parameters and parts with similar specifications to Vishay BPV11F.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, 5mm Dia (T 1 3/4)

Number of Pins
3

Operating Temperature
-40°C~100°C TA

Packaging
Bulk

Published
1999

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Max Power Dissipation
150mW

Orientation
Top View

Current Rating
50mA

Number of Elements
1

Polarity
NPN

Number of Channels
1

Power Dissipation
150mW

Viewing Angle
30°

Power - Max
150mW

Lens Style
Domed

Rise Time
6?s

Fall Time (Typ)
5 ?s

Max Collector Current
50mA

Collector Emitter Breakdown Voltage
70V

Power Consumption
150mW

Voltage - Collector Emitter Breakdown (Max)
70V

Current - Collector (Ic) (Max)
10mA

Wavelength
930nm

Collector Emitter Saturation Voltage
130mV

Max Breakdown Voltage
70V

Dark Current
50nA

Current - Dark (Id) (Max)
50nA

Height
8.6mm

Length
5.75mm

Width
5.75mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Vishay BPV11F.

No product details available
