Vishay SIC402ACD-T1-GE3
Vishay SIC402ACD-T1-GE3

Vishay SIC402ACD-T1-GE3

Manufacturer No:

SIC402ACD-T1-GE3

Manufacturer:

Vishay

Package:

32-PowerVFQFN

Description:

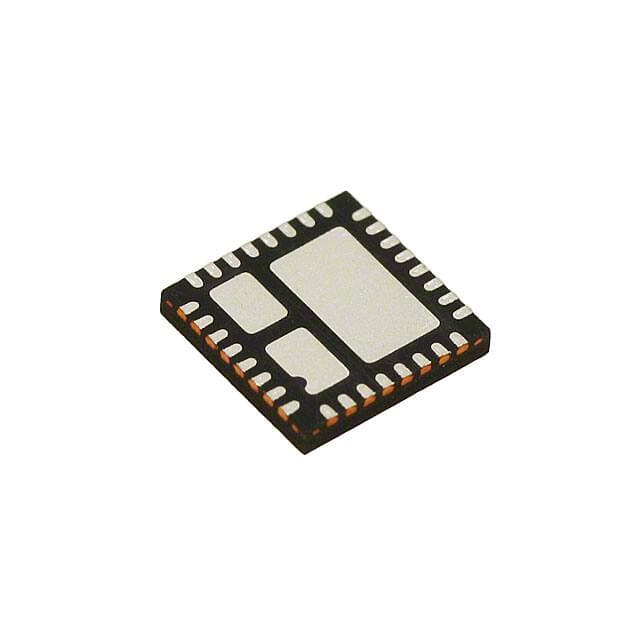

Adjustable PMIC microBUCK® Series SIC402 32 Pin 32-PowerVFQFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SIC402ACD-T1-GE3 information

Vishay SIC402ACD-T1-GE3 technical specifications, attributes, parameters and parts with similar specifications to Vishay SIC402ACD-T1-GE3.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-PowerVFQFN
  • Number of Pins
  • 32
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Digi-Reel®
  • Series
  • microBUCK®
  • Published
  • 2013
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • ECCN Code
  • EAR99
  • Voltage - Supply
  • 3V~28V
  • Base Part Number
  • SIC402
  • Number of Outputs
  • 2
  • Output Voltage
  • 5.5V
  • Output Type
  • Adjustable
  • Max Output Current
  • 10A
  • Voltage - Output 1
  • 5.5V
  • Operating Supply Voltage
  • 28V
  • Analog IC - Other Type
  • SWITCHING REGULATOR
  • Operating Supply Current
  • 160?A
  • Power Dissipation
  • 3.4W
  • Output Current
  • 10A
  • Voltage - Output 2
  • 750mV
  • Topology
  • Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
  • Min Input Voltage
  • 3V
  • Frequency - Switching
  • 200kHz~1MHz
  • Max Input Voltage
  • 28V
  • Current - Output 1
  • 10A
  • Min Output Voltage
  • 600mV
  • Current - Output 2
  • 200mA
  • w/Sequencer
  • No
  • Voltage/Current - Output 1
  • 0.6V~5.5V 10A
  • Voltage/Current - Output 2
  • Adj to 0.75V 200mA
  • Height
  • 850?m
  • Length
  • 5mm
  • Width
  • 5mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Vishay SIC402ACD-T1-GE3.

Datasheets:

RohsStatement:

SIC402ACD-T1-GE3 Overview


32-PowerVFQFN packaging is voltage regulators' for voltage regulators' transportation.The shipment of package Digi-Reel® has been completed.There are total of 2 outputs that are supported by voltage regulator.To prevent malfunctions, the operating temperature should be set to -40°C~85°C.Using search SIC402 will help you find more pin-to-pin solutions.A voltage of 160?A is needed to operate this voltage regulator.A 32 pattern is used for this voltage regulator's pin arrangement.It can be used in many different applications due to its output voltage of 5.5V.A voltage of 3V is required for this regulator.It is possible to use 28V voltage with this voltage regulator.An output type Adjustable is used for this regulator controller.The DC DC Switching Regulator should output 10A at the moment.Maximum current 10A will be produced by it.A Surface Mount allows mounting on PCBs or other boards.There is a voltage limit of 600mV on the output of this controller.The maximum voltage that can be output by this voltage regulator is 5.5V voltage.Here, a voltage regulator 12v from microBUCK® is used.

SIC402ACD-T1-GE3 Features


2 outputs
Operating Temperature: -40°C~85°C


SIC402ACD-T1-GE3 Applications


There are a lot of Vishay Siliconix
SIC402ACD-T1-GE3 Linear Regulator Controllers applications.


  • Low-dropout SMPS post regulator
  • High-current, current-limited switch
  • Dual/Triple Power Supplies
  • Desknotes and Notebooks
  • Graphic Cards
  • Ultra-Low-Dropout
  • Voltage Regulators
  • Low-Voltage DSP Power Supplies
  • Microcontroller Power Supplies
  • Motherboards

User Guide
