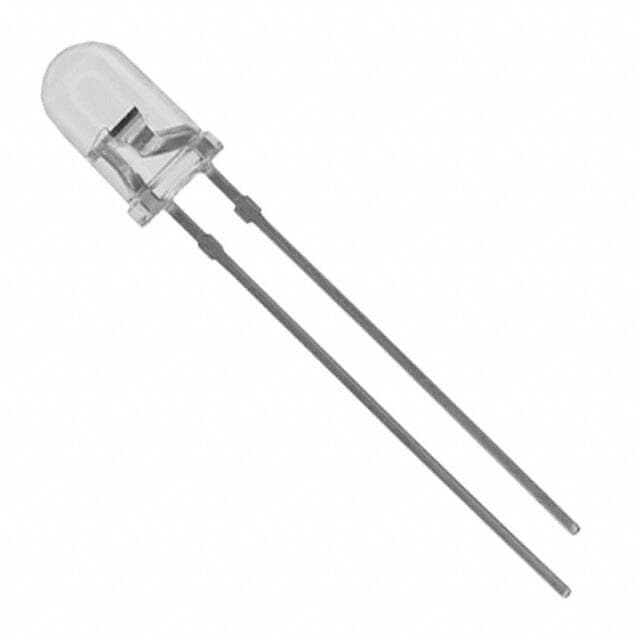

Vishay BPV10
Vishay BPV10

Vishay BPV10

Manufacturer No:

BPV10

Manufacturer:

Vishay

Package:

Radial

Description:

Through Hole -40°C~100°C Bulk Wavelength: 920nm Radial 60V 0.79mm2 2.5 ns 1nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BPV10 information

Vishay BPV10 technical specifications, attributes, parameters and parts with similar specifications to Vishay BPV10.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial
  • Number of Pins
  • 2
  • Operating Temperature
  • -40°C~100°C
  • Packaging
  • Bulk
  • Published
  • 2016
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -40°C
  • Capacitance
  • 11pF
  • Max Power Dissipation
  • 215mW
  • Diode Type
  • PIN
  • Power Dissipation
  • 215mW
  • Viewing Angle
  • 40°
  • Forward Current
  • 50mA
  • Lens Style
  • Clear
  • Response Time
  • 2.5 ns
  • Bandwidth
  • 250MHz
  • Voltage - DC Reverse (Vr) (Max)
  • 60V
  • Breakdown Voltage
  • 60V
  • Rise Time
  • 2.5ns
  • Fall Time (Typ)
  • 2.5 ns
  • Max Reverse Voltage (DC)
  • 60V
  • Reverse Breakdown Voltage
  • 60V
  • Wavelength
  • 920nm
  • Max Junction Temperature (Tj)
  • 100°C
  • Peak Wavelength
  • 920 nm
  • Reverse Voltage (DC)
  • 60V
  • Ambient Temperature Range High
  • 100°C
  • Dark Current
  • 1nA
  • Spectral Range
  • 380nm ~ 1100nm
  • Active Area
  • 0.79mm2
  • Current - Dark (Typ)
  • 1nA
  • Height
  • 12.1mm
  • Length
  • 8.6mm
  • Width
  • 5mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Vishay BPV10.

Datasheets:

RohsStatement:

BPV10 Overview


To protect them from damage, these photodiodes are packaged in the Bulk. For safety reasons, the photodiodes are packaged in Radial packages. When reverse-biased continuously, photodiodes can withstand a maximum voltage of 60V. When operating in reverse-bias mode, the photodiodes should not exceed 60V. There are 2 pins on the photodiodes. In a circuit, photodiodes could release 215mW heat. Photodiodes should operate at a temperature of 100°C. In spite of this, the photodiodes should be operated at a minimum operating temperature of -40°C. In the case of photodiodes, the reverse anode voltage should be 60V. A circuit should have a maximum heat release rate of 215mW from the photodiodes. With a reverse voltage of 60V, the photodiodes can work properly in the DC circuit. Current should flow across a photodiode at 1.3V voltage. To make sure photodiodes work, the breakdown voltage should be 60V. In the absence of light input, a photodiode produces 1nA current.

BPV10 Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 380nm ~ 1100nm
Response Time: 2.5 ns
Viewing Angle: 40°


BPV10 Applications


There are a lot of Vishay Semiconductor Opto Division
BPV10 Photodiodes applications.


  • Infrared remote control
  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
