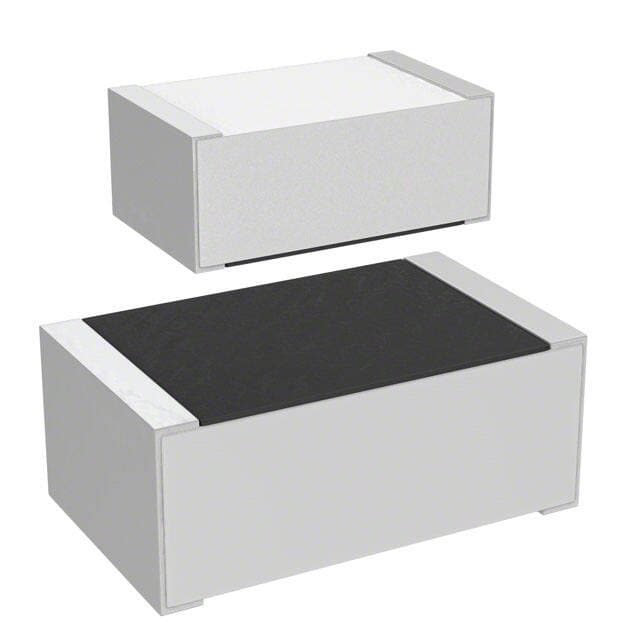

VISHAY M55342K06B100ERS3
Manufacturer No:
M55342K06B100ERS3
Manufacturer:
Package:
0805 (2012 Metric)
Description:
FIXED RESISTOR SURFACE MOUNT, Military, MIL-PRF-55342, RM0705 Series, Thick Film, 100kOhm, 0.15W, ±1%, -55°C~150°C
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
M55342K06B100ERS3 information
VISHAY M55342K06B100ERS3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY M55342K06B100ERS3.
- Type
- Parameter
- Factory Lead Time
- 9 Weeks
- Contact Plating
- Lead, Tin
- Package / Case
- 0805 (2012 Metric)
- Surface Mount
- YES
- Terminal Shape
- WRAPAROUND
- Mounting Feature
- SURFACE MOUNT
- Operating Temperature
- -55°C~150°C
- Packaging
- Tape & Reel (TR)
- Series
- Military, MIL-PRF-55342, RM0705
- Published
- 2016
- Size / Dimension
- 0.080Lx0.050W 2.03mmx1.27mm
- Tolerance
- ±1%
- Feature
- Military
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Temperature Coefficient
- ±100ppm/°C
- Resistance
- 100kOhm
- Composition
- Thick Film
- Power (Watts)
- 0.15W
- Additional Feature
- ANTI-SULFUR
- Power Rating
- 150mW
- Packing Method
- TR, 7 Inch
- Max Power Dissipation
- 150mW
- Depth
- 1.27mm
- Construction
- Rectangular
- Resistor Type
- FIXED RESISTOR
- Military Standard
- MIL-PRF-55342
- Case Code (Metric)
- 2012
- Rated Power Dissipation (P)
- 0.15W
- Case Code (Imperial)
- 0805
- Failure Rate
- R (0.01%)
- Height
- 635?m
- Height Seated (Max)
- 0.033 0.84mm
- Radiation Hardening
- No
- RoHS Status
- Non-RoHS Compliant
- Lead Free
- Contains Lead
