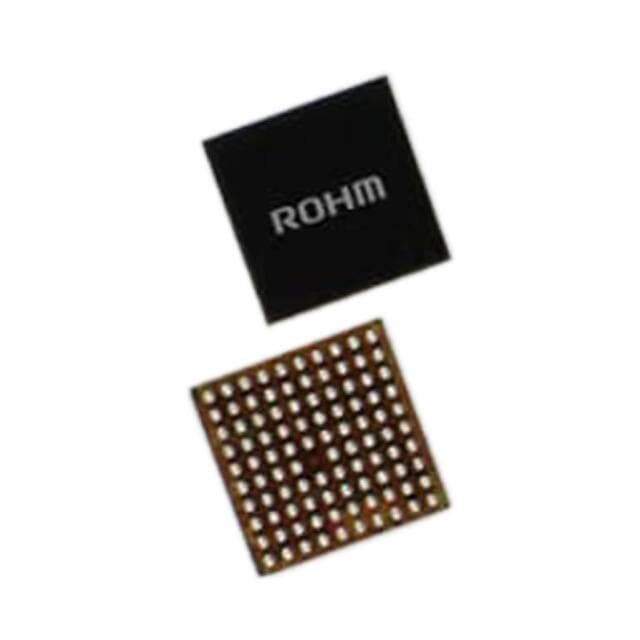

ROHM BD71815AGW-E2

Manufacturer No:

BD71815AGW-E2

Manufacturer:

ROHM

Package:

VFBGA,

Description:

Power Supply Management Circuit, Adjustable, 15 Channel, PBGA80, UCSP55M4C-80

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD71815AGW-E2 information

ROHM BD71815AGW-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD71815AGW-E2.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
ROHM CO LTD

Package Description
VFBGA,

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
16 Weeks

Date Of Intro
2016-10-17

Samacsys Manufacturer
ROHM Semiconductor

Adjustable Threshold
YES

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

JESD-30 Code
S-PBGA-B80

Length
4 mm

Number of Channels
15

Number of Functions
1

Number of Terminals
80

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage-Max (Vsup)
3.4 V

Supply Voltage-Min (Vsup)
1.5 V

Supply Voltage-Nom (Vsup)
1.8 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
4 mm

Download datasheets and manufacturer documentation for ROHM BD71815AGW-E2.

BD71815AGW-E2 Overview

For ease of voltage regulators' transportation, it is packaged in 55-UFBGA, WLCSP boxes.Embark on a journey with package Tape & Reel (TR).Voltage regulator supports up to 13 outputs in total.In order to prevent malfunctions, it is recommended that the operating temperature be set to -40°C~85°C.switching regulator 80 terminals can be found here.Powered by 1.8V voltage, the voltage regulator 12v can meet many demanding requirements.It is necessary for the DC DC Switching Regulator to have at least 1.5V to start up.There is no need to feed the voltage regulator DC to DC with voltage above 3.4V.It is important for the output quality to be maintained by working together through the 15 channels of the voltage regulator.

BD71815AGW-E2 Features

13 outputs
Operating Temperature: -40°C~85°C
Supply voltage range: 1.8V

BD71815AGW-E2 Applications

There are a lot of ROHM Semiconductor
BD71815AGW-E2 Linear Regulator Controllers applications.

High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
Battery Operating Equipment
