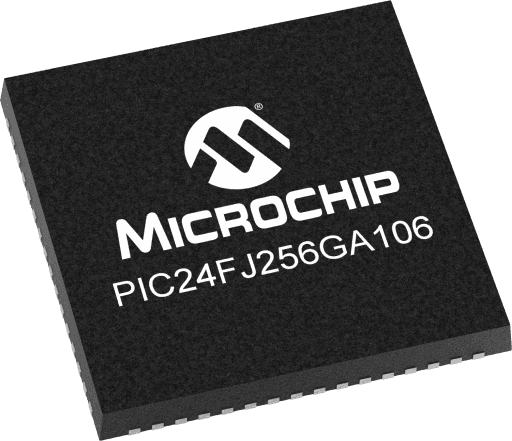

Microchip PIC24FJ256GA106-I/MR
Manufacturer No:
PIC24FJ256GA106-I/MR
Manufacturer:
Microchip
Package:
64-VFQFN Exposed Pad
Description:
16 MIPS, 256KB Flash, 16KB RAM, 64 pins
Quantity:
In Stock :8063
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 30 - Wed, Jul 1, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC24FJ256GA106-I/MR Information
Microchip PIC24FJ256GA106-I/MR technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ256GA106-I/MR.
- Type
- Parameter
- CPU Type
- 16-bit PIC MCU
- CPU Speed Max MHz (megahertz)
- 16
- Program Memory Size (KB)
- 256
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 0
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 125
- Operation Voltage Min.(V)
- 2
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 64
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 3
- ADC Modules
- 1
- ADC Channels
- 16
- ADC Resolution Max
- 10
- ADC Sampling Rate (ksps)
- 500
- Number of DACs
- 0
- DAC outputs
- 0
- Max DAC Resolution (bits)
- 0
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip PIC24FJ256GA106-I/MR.
Programming Specifications:
Brochures:
Application Notes:
Data Sheets:
Legacy Collaterals:
User Guide:
Reference Manual:
Supporting Collateral:
Ideal for low power (<100nA standby current) and connectivity applications that benefit from the availability of multiple serial ports (3xI2C, 3xSPI), 4xUARTS, and 23 independent timers. Large amounts of RAM (16kB) memory for buffering and large (up to 256kB) Enhanced Flash program memory make it ideal for embedded control and monitoring applications. PPS (Peripheral Pin Select) aids in configuring the most efficient pin configuration of available I/O, and CTMU provides touch sensing support for up to 64 individual buttons.
Available in 64, 80, and 100 pin packages.
- CPU
- Up to 16 MIPS performance
- 16 x 16 Hardware Multiply, Single Cycle Execution
- 12-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set
- Low Power nanoWatt
- Run, Idle and Sleep modes
- Multiple, Switchable Clock Modes for Optimum Performance and Power Management
- Run mode: 1 mA/MIPS, 2.0V Typical
- Sleep mode Current Down to 100 nA Typical
- Standby Current with 32 kHz Oscillator:2.5 uA,2.0V typical
- Flash Program Memory
- Self-Reprogrammable under Software Control
- 10,000 erase/write cycles
- 20 year data retention
- EEprom emulation capable
- System
- Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
- On-chip LDO Voltage Regulator
- JTAG Boundary Scan and Flash Memory Program Support
- Fail-Safe Clock Monitor – allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- Analog Features
- 10-bit ADC, 16 channels, 500k samples per second
- Three Analog comparators
- Peripherals
- CTMU supports Capacitive Touch applications
- Perpheral Pin Select allows I/O remapping of many peripherals in real time
- 4xUART Modules with LIN and IrDA support, 4 Deep FIFO
- 3xSPI ™ Modules with 8 Deep FIFO
- 3xI2C™ Modules with Master and Slave Modes
- Five 16-bit Timer Modules
- Up to 9 Input Capture and 9 Output Compare/PWM with dedicated time base
- Hardware RTCC, Real-Time Clock Calendar with Alarms
- PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
