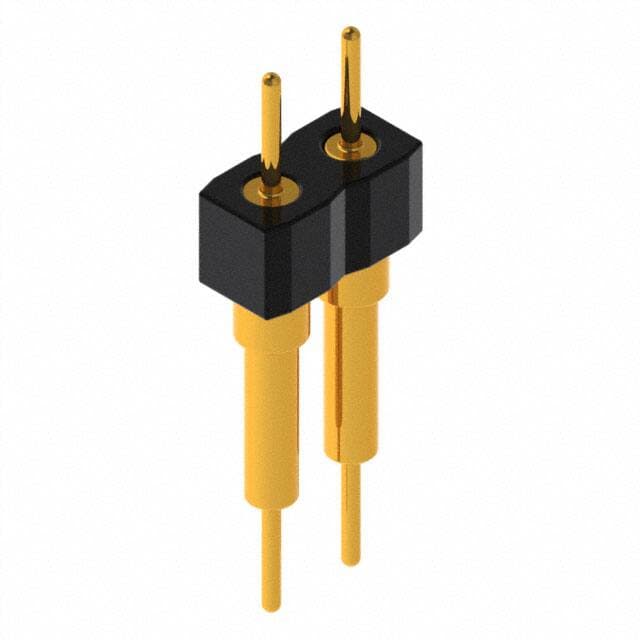

SAMTEC BBD-101-G-B

Manufacturer No:

BBD-101-G-B

Manufacturer:

Package:

Description:

BBD Series 2-Row Header Solder Bronze Tube Through Hole Gold Polyester, Glass Filled 2-Position Board to Board 0.335 8.51mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BBD-101-G-B information

SAMTEC BBD-101-G-B technical specifications, attributes, parameters and parts with similar specifications to SAMTEC BBD-101-G-B.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Bronze

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Circular

Insulation Material
Polyester, Glass Filled

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
BBD

Published
2014

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
2

Gender
Male

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Insulation Height
0.335 8.51mm

Style
Board to Board

Number of Positions Loaded
All

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Body Length or Diameter
0.1 inch

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.125 3.18mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Finish - Post
Nickel

Contact Length - Mating
0.125 3.18mm

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Overall Contact Length
0.585 14.86mm

Mating Contact Pitch
0.1 inch

Download datasheets and manufacturer documentation for SAMTEC BBD-101-G-B.

BBD-101-G-B Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the BBD Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.

BBD-101-G-B Features

BBD series

BBD-101-G-B Applications

There are a lot of Samtec Inc.
BBD-101-G-B Rectangular Connectors applications.
