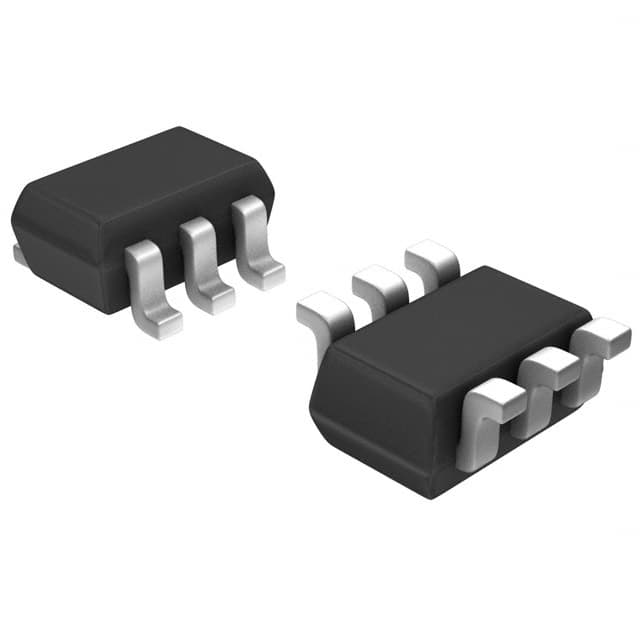

DIODES BAV70DW-7-F
DIODES BAV70DW-7-F

DIODES BAV70DW-7-F

Manufacturer No:

BAV70DW-7-F

Manufacturer:

DIODES

Package:

6-TSSOP, SC-88, SOT-363

Description:

Standard Rectifier Diode 2 Pair Common Cathode Small Signal =< 200mA (Io), Any Speed -65°C~150°C 150mA 75V-DC 4-Element 6-TSSOP, SC-88, SOT-363 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAV70DW-7-F information

DIODES BAV70DW-7-F technical specifications, attributes, parameters and parts with similar specifications to DIODES BAV70DW-7-F.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-TSSOP, SC-88, SOT-363
  • Number of Pins
  • 6
  • Weight
  • 6.010099mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FAST SWITCHING
  • HTS Code
  • 8541.10.00.70
  • Capacitance
  • 2pF
  • Subcategory
  • Signal Diodes
  • Power Rating
  • 200mW
  • Voltage - Rated DC
  • 75V
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 300mA
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • BAV70DW
  • Pin Count
  • 6
  • Number of Elements
  • 4
  • Element Configuration
  • Common Cathode
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 2.5?A @ 75V
  • Power Dissipation
  • 200mW
  • Voltage - Forward (Vf) (Max) @ If
  • 1.25V @ 150mA
  • Forward Current
  • 150mA
  • Operating Temperature - Junction
  • -65°C~150°C
  • Max Surge Current
  • 2A
  • Output Current-Max
  • 0.15A
  • Forward Voltage
  • 1.25V
  • Max Reverse Voltage (DC)
  • 75V
  • Average Rectified Current
  • 150mA
  • Reverse Recovery Time
  • 4 ns
  • Peak Reverse Current
  • 2.5?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 75V

Download datasheets and manufacturer documentation for DIODES BAV70DW-7-F.

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

BAV70DW-7-F Overview


When the forward voltage is set to 1.25V, this device will operate.Array is capable of supporting a maximum output voltage of 0.15A.Monarrayoring the surge current and preventing array from exceeding 2A should be the rule.When the forward voltage is set to 150mA, this device will operate.A current of 300mA can be drawn from the part.Approximately 2pF farads of capacitance are found in this device.Devices like this one are powered with a reverse voltage peak of 2.5?A.This electronic or electrical device creates 200mW of heat (energy loss) as a derivative of its primary action.

BAV70DW-7-F Features


1.25V forward voltage
a maximum output voltage of 0.15A
2pF farads
a peak voltage of 2.5?A
a reverse voltage peak of 2.5?A


BAV70DW-7-F Applications


There are a lot of Diodes Incorporated
BAV70DW-7-F applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
