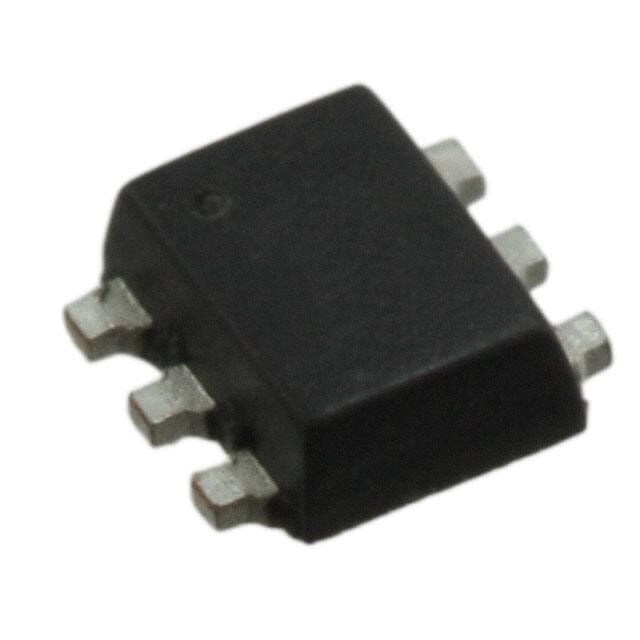

ST BAT54-09P6FILM
ST BAT54-09P6FILM

ST BAT54-09P6FILM

Manufacturer No:

BAT54-09P6FILM

Manufacturer:

ST

Package:

SOT-563, SOT-666

Description:

Schottky Rectifier Diode 2 Independent Fast Recovery =< 500ns, > 200mA (Io) -40°C~150°C 300mA 40V-DC 2-Element SOT-563, SOT-666 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAT54-09P6FILM information

ST BAT54-09P6FILM technical specifications, attributes, parameters and parts with similar specifications to ST BAT54-09P6FILM.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-563, SOT-666
  • Number of Pins
  • 6
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Terminal Finish
  • MATTE TIN
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • HTS Code
  • 8541.10.00.70
  • Subcategory
  • Other Diodes
  • Voltage - Rated DC
  • 40V
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 300mA
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • BAT54
  • Pin Count
  • 6
  • Number of Elements
  • 2
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 1?A @ 30V
  • Voltage - Forward (Vf) (Max) @ If
  • 900mV @ 100mA
  • Max Reverse Leakage Current
  • 1?A
  • Operating Temperature - Junction
  • -40°C~150°C
  • Max Surge Current
  • 1A
  • Output Current-Max
  • 0.3A
  • Current - Average Rectified (Io)
  • 300mA DC
  • Forward Voltage
  • 900mV
  • Max Reverse Voltage (DC)
  • 40V
  • Average Rectified Current
  • 300mA
  • Reverse Recovery Time
  • 5 ns
  • Peak Non-Repetitive Surge Current
  • 1A
  • Diode Configuration
  • 2 Independent
  • Recovery Time
  • 5 ns
  • Reverse Test Voltage
  • 30V
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST BAT54-09P6FILM.

Datasheets:

BAT54-09P6FILM Overview


The device operates when the forward voltage is set to 900mV.A maximum output voltage of 0.3A is supported by array.Array should be a rule to monArrayor the surge current and not allow Array to exceed 1A.There can be a current drawn from this part of 300mA.The maximum reverse leakage current from this semiconductor is 1?A, which corresponds to the reverse leakage current from that device when reverse biased.

BAT54-09P6FILM Features


900mV forward voltage
a maximum output voltage of 0.3A


BAT54-09P6FILM Applications


There are a lot of STMicroelectronics
BAT54-09P6FILM applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
