ST BAL-NRF02D3

Manufacturer No:

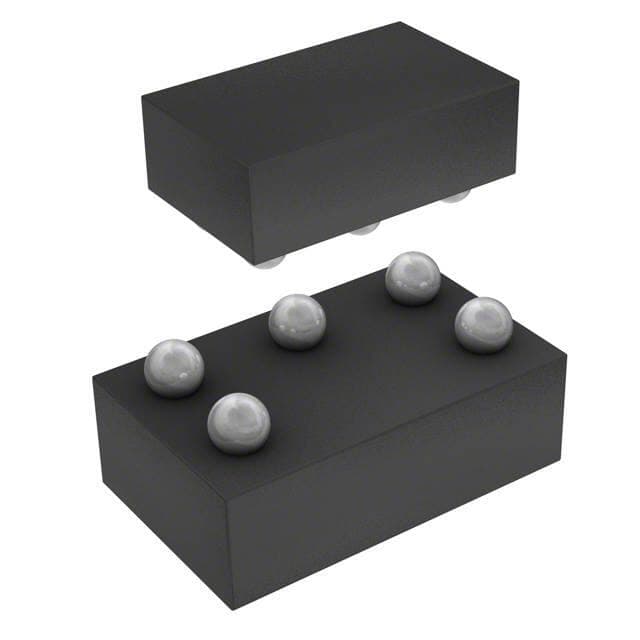

BAL-NRF02D3

Manufacturer:

Package:

LEAD FREE

Description:

50Ω nominal input / conjugate match balun to nRF51822-CEAA, with integrated harmonic filter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAL-NRF02D3 information

ST BAL-NRF02D3 technical specifications, attributes, parameters and parts with similar specifications to ST BAL-NRF02D3.

Type
Parameter

Rohs Code
Yes

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
LEAD FREE

Reach Compliance Code
compliant

ECCN Code
EAR99

Factory Lead Time
16 Weeks, 3 Days

Samacsys Manufacturer
STMicroelectronics

Additional Feature
HEIGHT DIMENSION INCLUDES WITH TERMINALS

Cut-off Frequency-Max
2540 MHz

Cut-off Frequency-Min
2400 MHz

Height
0.64 mm

Insertion Loss
1.9 dB

JESD-609 Code
e1

Length
1.4 mm

Mounting Feature
SURFACE MOUNT

Operating Temperature-Max
105 °C

Operating Temperature-Min
-40 °C

Packing Method
TAPE & REEL

Surface Mount
YES

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Transformer Type
RF TRANSFORMER

Width
0.86 mm

Download datasheets and manufacturer documentation for ST BAL-NRF02D3.

Datasheets:

en.DM00087690.pdf

STMicroelectronics Balun BAL-NRF02D3 is a signal conditioning balun designed for use with the NRF51822 WLCSP type. This balun provides a high-performance, low-cost solution for signal conditioning applications. It Features a wide frequency range, low insertion loss, and high isolation. The BAL-NRF02D3 is ideal for use in wireless communication systems, such as Bluetooth, Wi-Fi, and Zigbee.Description

The STMicroelectronics Balun BAL-NRF02D3 is a signal conditioning balun designed for use with the NRF51822 WLCSP type. This balun provides a high-performance, low-cost solution for signal conditioning applications. It Features a wide frequency range of up to 2.4GHz, low insertion loss of 0.3dB, and high isolation of 20dB. The BAL-NRF02D3 is designed to be used in wireless communication systems, such as Bluetooth, Wi-Fi, and Zigbee.

Features

? Wide frequency range of up to 2.4GHz
? Low insertion loss of 0.3dB
? High isolation of 20dB
? Low cost solution for signal conditioning applications
? Designed for use with the NRF51822 WLCSP type

Application

The STMicroelectronics Balun BAL-NRF02D3 is ideal for use in wireless communication systems, such as Bluetooth, Wi-Fi, and Zigbee. It can also be used in other signal conditioning applications, such as RFID, GPS, and cellular networks.
