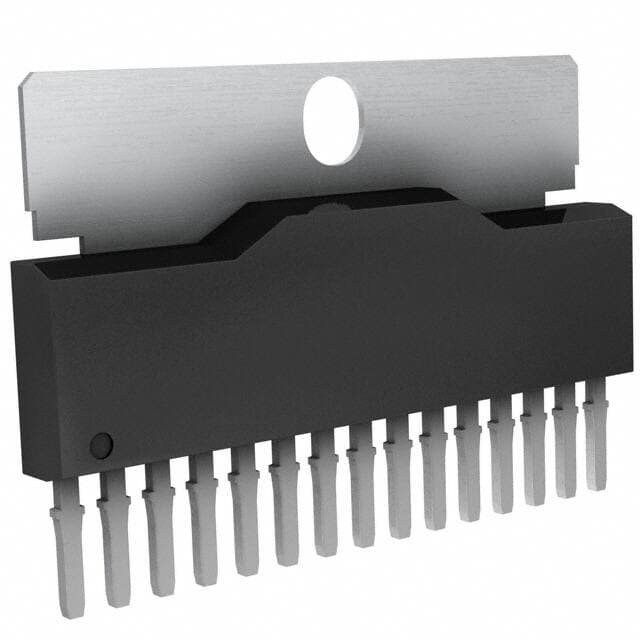

ROHM BA5417

Manufacturer No:

BA5417

Manufacturer:

ROHM

Package:

15-SIP + Tab

Description:

22mA mA 5W W Audio Amplifiers 15W W 15 pins 15-SIP + Tab

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA5417 information

ROHM BA5417 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA5417.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Copper, Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
15-SIP + Tab

Number of Pins
15

Operating Temperature
-20°C~75°C TA

Packaging
Tube

Published
2003

JESD-609 Code
e2

Feature
Depop, Standby, Thermal Protection

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
15

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin/Copper (Sn/Cu)

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
15W

Technology
BIPOLAR

Voltage - Supply
6V~15V

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Base Part Number
BA54*

Pin Count
15

Output Type
2-Channel (Stereo)

Supply Voltage-Min (Vsup)
6V

Number of Channels
2

Nominal Supply Current
22mA

Power Dissipation
15W

Quiescent Current
22mA

Output Power
5W

Supply Type
Single

Voltage Gain
45dB

Power Supply Rejection Ratio (PSRR)
55dB

Gain
45 dB

Max Output Power
5W

Max Output Power x Channels @ Load
5W x 2 @ 3 ?

Harmonic Distortion
10%

Load Impedance
3Ohm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free
