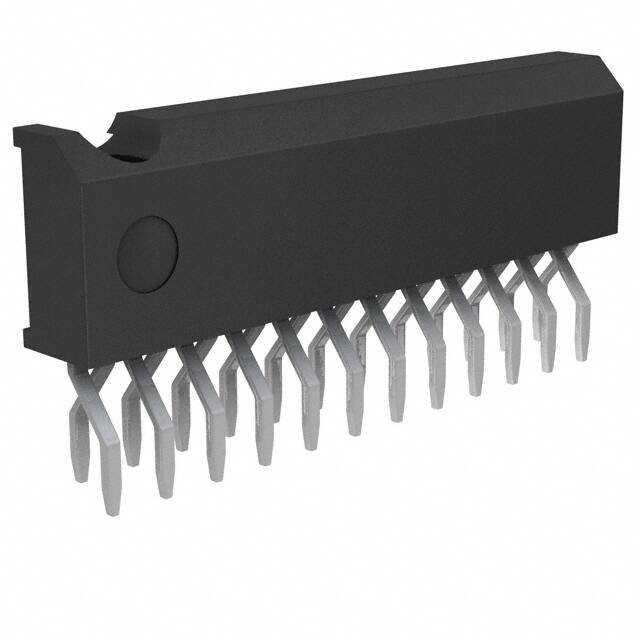

ROHM BA3823LS

Manufacturer No:

BA3823LS

Manufacturer:

ROHM

Package:

24-SIP Formed Leads

Description:

8V -25°C~75°C TA Multi-Functional Gate BA3823 0.889mm 24-SIP Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA3823LS information

ROHM BA3823LS technical specifications, attributes, parameters and parts with similar specifications to ROHM BA3823LS.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-SIP Formed Leads

Operating Temperature
-25°C~75°C TA

Packaging
Tube

Published
1999

JESD-609 Code
e3/e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
TIN/TIN COPPER

Applications
Automotive Audio, Consumer Audio

Subcategory
Audio Control ICs

Technology
BIPOLAR

Voltage - Supply
3.5V~14V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.889mm

Time@Peak Reflow Temperature-Max (s)
10

Base Part Number
BA3823

JESD-30 Code
R-PZIP-T24

Function
Audio Tone Processor

Supply Voltage-Max (Vsup)
14V

Power Supplies
8V

Number of Channels
5

Interface
Analog

Supply Current-Max
6.7mA

Consumer IC Type
EQUALIZER CIRCUIT

Number of Bands
5

Harmonic Distortion
0.01%

Channel Separation
73 dB

Length
21.8mm

Height Seated (Max)
8.4mm

Width
2.8mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA3823LS.

Datasheets:

rohmsemiconductor-ba3823ls-datasheets-4164.pdf

BA3823LS Overview

This item comes with a case that goes with it. The mounting type that is recommended is Through Hole. The embedded file is in the 24-SIP Formed Leads case. The device has a 5 channel. Here is a list of Audio Tone Processor functions for your reference. There is the possibility of applying the device in Automotive Audio, Consumer Audio. There is a delivery within 3.5V~14V of the votage. In this device, temperature is measured in the -25°C~75°C TA range. On the chip, 24 terminations are present. If you search for the BA3823 family, you will find similar parts. Sorting by EQUALIZER CIRCUIT can be done to find out the type of consumer IC in the part. There is a part of Audio Control ICs family. At 8V volts, it can provide voltage. It reaches 14V when the maximum supply voltage (Vsup) is reached. As you can see, Through Hole has mounted it. On it, there are 5 bands. A 6.7mA-operated supply current is used.
