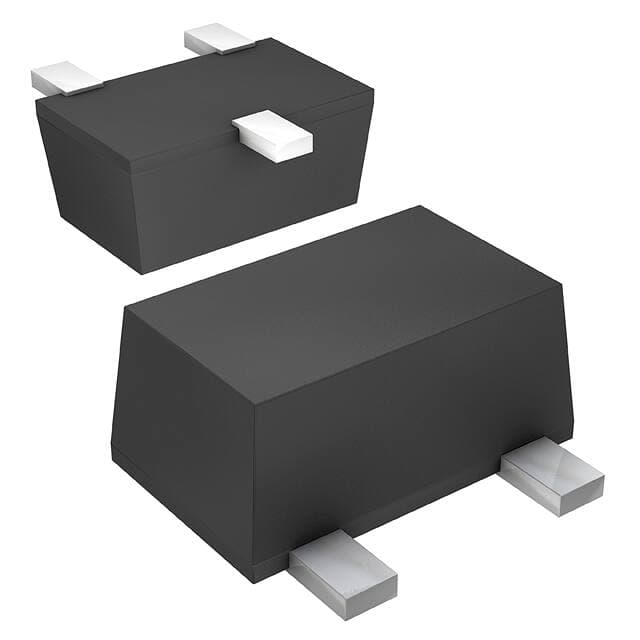

ROHM DAN222MT2L

Manufacturer No:

DAN222MT2L

Manufacturer:

ROHM

Package:

R-PDSO-F3

Description:

Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, VMD3, 3 PIN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAN222MT2L information

ROHM DAN222MT2L technical specifications, attributes, parameters and parts with similar specifications to ROHM DAN222MT2L.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROHM CO LTD

Package Description
R-PDSO-F3

Pin Count
3

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.70

Samacsys Manufacturer
ROHM Semiconductor

Application
GENERAL PURPOSE

Configuration
COMMON CATHODE, 2 ELEMENTS

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.2 V

JESD-30 Code
R-PDSO-F3

JESD-609 Code
e2

Moisture Sensitivity Level
1

Non-rep Pk Forward Current-Max
4 A

Number of Elements
2

Number of Terminals
3

Operating Temperature-Max
150 °C

Output Current-Max
0.1 A

Package Body Material
PLASTIC/EPOXY

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Power Dissipation-Max
0.15 W

Qualification Status
Not Qualified

Rep Pk Reverse Voltage-Max
80 V

Reverse Recovery Time-Max
0.004 µs

Surface Mount
YES

Terminal Finish
Tin/Copper (Sn/Cu)

Terminal Form
FLAT

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
10

Download datasheets and manufacturer documentation for ROHM DAN222MT2L.

DAN222MT2L Overview

Devices that have a forward voltage of 1.2V will operate.The maximum output voltage is 0.1A.Keeping the surge current under 4A and preventing it from exceeding it should be the rule.Devices that have a forward voltage of 100mA will operate.Array is possible to draw current from the part of 100mA.This device has a capacitance of about 3pF farads.The maximum reverse leakage current from a semiconductor device when reverse biased is 100nA.As a derivative of its primary action, this electronic or electrical device generates 150mW of heat.A device like this produces the most 150mW heat (energy loss or waste).

DAN222MT2L Features

1.2V forward voltage
a maximum output voltage of 0.1A
3pF farads

DAN222MT2L Applications

There are a lot of ROHM Semiconductor
DAN222MT2L applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
