ROHM BA00DD0WCP-V5E2

Manufacturer No:

BA00DD0WCP-V5E2

Manufacturer:

ROHM

Package:

TO-220-5 Full Pack

Description:

Enable Adjustable BA00 PMIC TO-220-5 Full Pack

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA00DD0WCP-V5E2 information

ROHM BA00DD0WCP-V5E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA00DD0WCP-V5E2.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-5 Full Pack

Number of Pins
5

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Max Power Dissipation
2W

Technology
BIPOLAR

Terminal Position
ZIG-ZAG

Number of Functions
1

Base Part Number
BA00

Current - Supply (Max)
5mA

Number of Outputs
1

Voltage - Input (Max)
25V

Output Voltage
16V

Output Type
Adjustable

Output Configuration
Positive

Control Features
Enable

Accuracy
1 %

Voltage - Output (Min/Fixed)
1.27V

Number of Regulators
1

Protection Features
Over Current, Over Temperature, Over Voltage

Current - Quiescent (Iq)
2.5mA

Voltage Dropout (Max)
0.7V @ 2A

PSRR
55dB (120Hz)

Dropout Voltage
450mV

Dropout Voltage1-Nom
0.45V

Voltage - Output (Max)
24.3V

Load Regulation-Max(%)
6.6%

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA00DD0WCP-V5E2.

BA00DD0WCP-V5E2 Overview

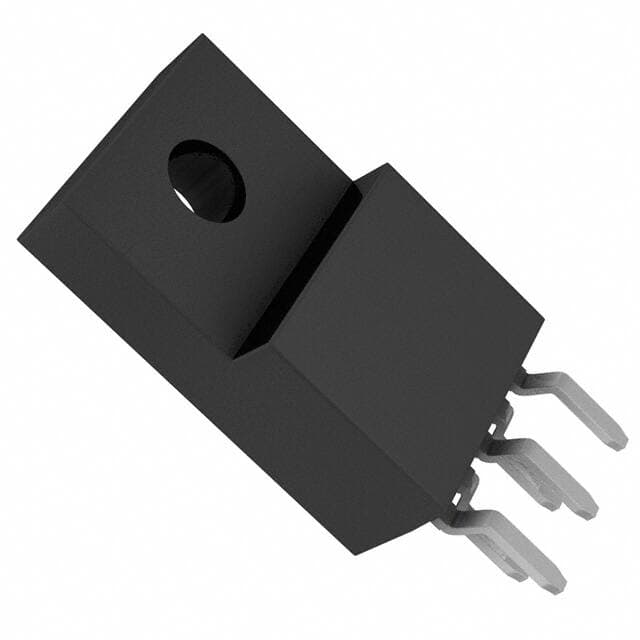

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-220-5 Full Pack case. On the regulater IC chip, there are a total of 5 terminations. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Through Hole can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 5 pins on the chip. As an FYI, this IC voltage regulator has the basic part number BA00. An example of such a component would be this Other Regulators component. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 2A.
