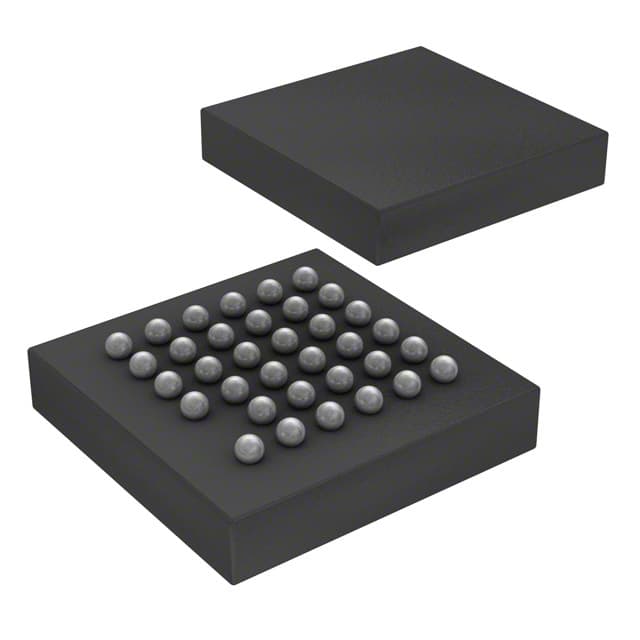

Microchip ATSAMD21E16B-UUT

Manufacturer No:

ATSAMD21E16B-UUT

Manufacturer:

Microchip

Package:

35-XFBGA, WLCSP

Description:

64KB 64K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D21E Series ATSAMD21E16 48MHz 3.3V 35-XFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMD21E16B-UUT information

Microchip ATSAMD21E16B-UUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD21E16B-UUT.

Type
Parameter

Factory Lead Time
26 Weeks

Mounting Type
Surface Mount

Package / Case
35-XFBGA, WLCSP

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
SAM D21E

Published
2016

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
35

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Frequency
48MHz

Base Part Number
ATSAMD21E16

JESD-30 Code
R-PBGA-B35

Supply Voltage-Max (Vsup)
3.63V

Supply Voltage-Min (Vsup)
1.62V

Interface
I2C, LIN, SPI, UART, USART

Memory Size
64kB

Number of I/O
26

RAM Size
8K x 8

Voltage - Supply (Vcc/Vdd)
1.62V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M0+

Peripherals
Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
64KB 64K x 8

Connectivity
I2C, LINbus, SPI, UART/USART, USB

Bit Size
32

Data Converter
A/D 10x12b; D/A 1x10b

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
YES

Core Architecture
ARM

Length
2.944mm

Height Seated (Max)
0.483mm

Width
2.699mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip ATSAMD21E16B-UUT.

ATSAMD21E16B-UUT Overview

There is a 35-XFBGA, WLCSP package available. The board has 26 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. SAM D21E-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a ARM® Cortex®-M0+ Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 35. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. This IC part has a memory size of 64kB. There are a number of alternatives to the base part number ATSAMD21E16 that you can find. Performing well when operated at frequency 48MHz can be achieved. Using YES PWM channels, the device works. The CPU is based on ARM cores.

ATSAMD21E16B-UUT Features

35-XFBGA, WLCSP package
Mounting type of Surface Mount

ATSAMD21E16B-UUT Applications

There are a lot of Microchip Technology
ATSAMD21E16B-UUT Microcontroller applications.

Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
