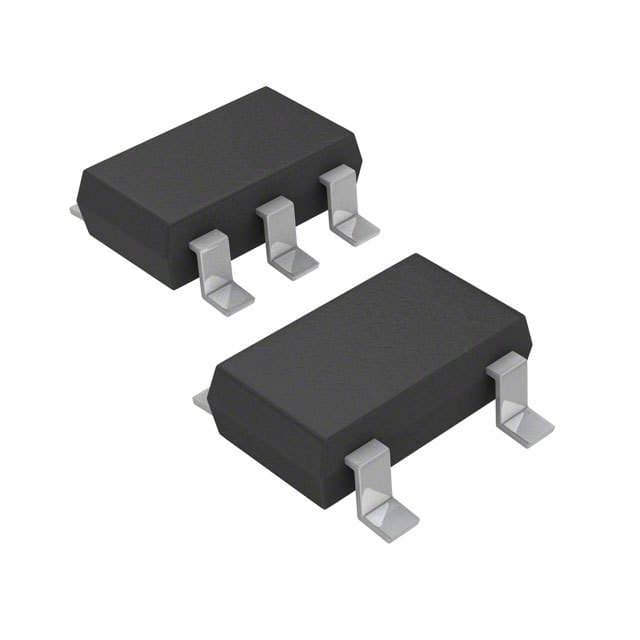

Renesas EL5120IWTZ-T7A

Manufacturer No:

EL5120IWTZ-T7A

Manufacturer:

Renesas

Package:

SOT-23-5

Description:

1 Channels 30mA per Channel 2nA 70 dB Instrumentational OP Amps 0.05μA 5 Pins SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5120IWTZ-T7A information

Renesas EL5120IWTZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5120IWTZ-T7A.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-5

Packaging
Cut Tape

Published
2003

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifiers

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
5

JESD-30 Code
R-PDSO-G5

Temperature Grade
INDUSTRIAL

Number of Channels
1

Operating Supply Current
500μA

Supply Current-Max
0.75mA

Slew Rate
10 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
70 dB

Current - Input Bias
2nA

Output Current per Channel
30mA

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
8MHz

Neg Supply Voltage-Nom (Vsup)
-5V

Unity Gain BW-Nom
8000 kHz

Average Bias Current-Max (IIB)
0.05μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
9V

Low-Bias
NO

Micropower
YES

-3db Bandwidth
12MHz

Bias Current-Max (IIB) @25C
0.05μA

Programmable Power
NO

Download datasheets and manufacturer documentation for Renesas EL5120IWTZ-T7A.

EL5120IWTZ-T7A Overview

It is packaged in an SOT-23-5-case that protects the operational amplifiers from damage. An op amp of this type is a OPERATIONAL AMPLIFIER-type. As far as the packaging is concerned, buffer op amp is delivered in a Cut Tape case. It is estimated that there will be at least 5 terminations this year. A total of 5 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifiers op amp ic can be identified by the fact that this is a type of Operational Amplifiers device. Op amp ic rates 2mV for input offset voltage. A supply current of 500μA can be used to operate this linear amplifier. There are a total of 1 channels available on the op amps. This instrumentation amplifier cannot operate below -40°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 85°C. An buffer amplifier is packed in a TAPE AND REEL-shape according to the design. This op amp ic can conduct a minimum voltage gain of 5600.

EL5120IWTZ-T7A Features

5 Pins
supply voltage of 5V

EL5120IWTZ-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
EL5120IWTZ-T7A Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
