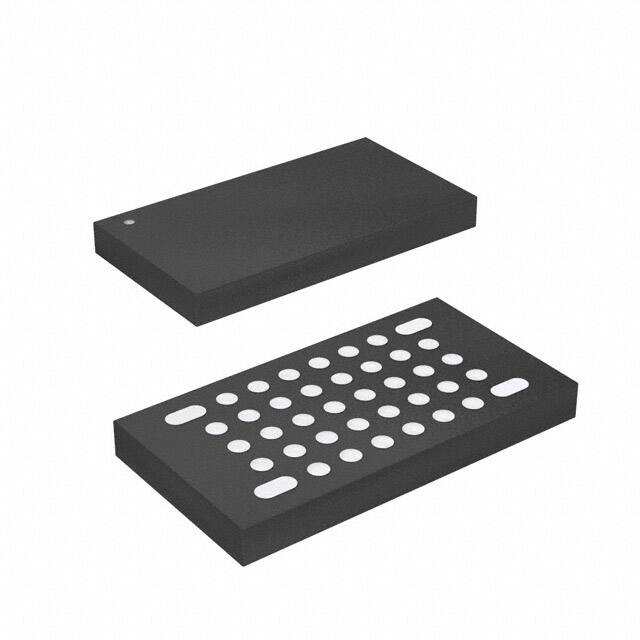

Microchip ATMEGA8HVA-4CKU

Manufacturer No:

ATMEGA8HVA-4CKU

Manufacturer:

Microchip

Package:

36-WFLGA

Description:

8KB 4K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA8HVA 36 Pin 4MHz 36-WFLGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATMEGA8HVA-4CKU information

Microchip ATMEGA8HVA-4CKU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATMEGA8HVA-4CKU.

Type
Parameter

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
36-WFLGA

Number of Pins
36

Supplier Device Package
36-LGA (6.5x3.5)

Operating Temperature
-20°C~85°C TA

Packaging
Tray

Series
AVR® ATmega

Published
1997

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
85°C

Min Operating Temperature
-20°C

Frequency
4MHz

Base Part Number
ATMEGA8HVA

Interface
SPI

Max Supply Voltage
9V

Min Supply Voltage
1.8V

Memory Size
8kB

Oscillator Type
Internal

Number of I/O
7

Speed
4MHz

RAM Size
512 x 8

Voltage - Supply (Vcc/Vdd)
1.8V~9V

Core Processor
AVR

Peripherals
Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
8KB 4K x 16

Connectivity
SPI

Data Converter
A/D 5x12b

Data Bus Width
8b

Number of Timers/Counters
2

Core Architecture
AVR

EEPROM Size
256 x 8

Max Frequency
4MHz

Number of Programmable I/O
6

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip ATMEGA8HVA-4CKU.

ATMEGA8HVA-4CKU Overview

The package has a 36-WFLGA shape. With 7 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 8-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -20°C~85°C TA range are measured by this Microcontroller. The AVR® ATmega series is comprised of this electrical component. The electronic part has a program memory size of 8KB 4K x 16. There's a AVR Core Processor inside. Its memory size is 8kB. It is possible to find alternatives to the base part number ATMEGA8HVA by using the part number search tool. An effective performance can be achieved at a frequency of 4MHz. It is possible to access the 36 pins on the chip. In total, it has 2 timers and counters in it. The equipment on this page features FLASH memory technology. This device features a AVR core architecture. As far as the programmability is concerned, it has 6 Programmable I/Os.

ATMEGA8HVA-4CKU Features

36-WFLGA package
Mounting type of Surface Mount
Minimum temperature of -20°C

ATMEGA8HVA-4CKU Applications

There are a lot of Microchip Technology
ATMEGA8HVA-4CKU Microcontroller applications.

Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
