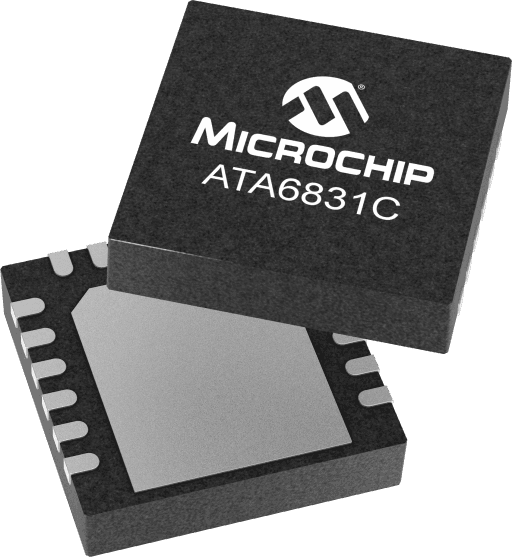

Microchip ATA6831C-PIQW-1

Manufacturer No:

ATA6831C-PIQW-1

Manufacturer:

Microchip

Package:

18-VFQFN Exposed Pad

Description:

ATA6831C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6831C-PIQW-1 information

Microchip ATA6831C-PIQW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6831C-PIQW-1.

Type
Parameter

Integrated LIN TR/RX
No

Integrated Op Amps
0

Max. Ron per Output (Ω)
1.5

Motor Control Methods
SPI, PWM

Motor Speed Output
No

Integrated Voltage Regs
0

Supply Voltage Max (V)
40

Supply Voltage Min (V)
7

Output Type
Integrated Driver

TempRange Max
125

TempRange Min
-40

Download datasheets and manufacturer documentation for Microchip ATA6831C-PIQW-1.

Fully protected triple half bridge driver designed in SOI technology that allows especially the control of motors by a microcontroller in automotive and industrial applications. Each of the three high-side and three low-side drivers, internally connected to form three half-bridges, can drive currents up to 1.0A. Its high PWM frequency capability can smoothly control two DC motors or a BLDC motor.

Supply voltage up to 40V
RDSon typically 0.8Ω at 25°C, maximum 1.5Ω at 150°C
Up to 1.0A output current
Three half-bridge outputs formed by three high-side and three low-side drivers
Capable of switching loads such as DC motors, bulbs, resistors, capacitors, and inductors
PWM capability up to 25kHz for each high-side output controlled by external PWM signal
No shoot-through current
Very low quiescent current IVS < 2μA in standby mode over total temperature range
Outputs short-circuit protected
Selective overtemperature protection for each switch and over temperature prewarning
Undervoltage protection
Various diagnostic functions such as shorted output, open load, overtemperature and power- supply fail detection
Serial data interface, daisy chain capable, up to 2MHz clock frequency
QFN18 package
