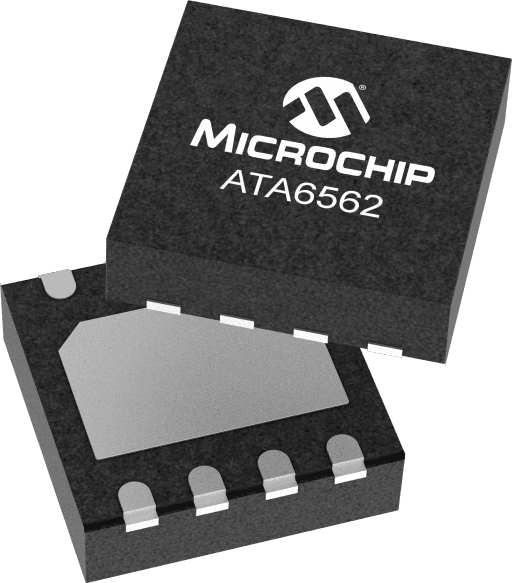

Microchip ATA6562-GAQW1

Manufacturer No:

ATA6562-GAQW1

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

CAN Transceiver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6562-GAQW1 information

Microchip ATA6562-GAQW1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6562-GAQW1.

Type
Parameter

CAN FD
Yes

Bitrate Max [MBits/s]
5

Functional Standards
ISO 26262 – Up to ASIL B

Operating Temperature Max. (C)
150

Operating Temperature Min. (C)
-40

Operating Voltage Max. (V)
5.5

Operating Voltage Min. (V)
4.5

Download datasheets and manufacturer documentation for Microchip ATA6562-GAQW1.

The Microchip ATA6562 is a high-speed CAN FD CAN transceiver that provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed (up to 5Mbit/s) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance and ideal passive behavior to the CAN bus when the supply voltage is off. Three operating modes (Standby, Normal and Silent Mode) together with the dedicated fail-safe features make the Microchip ATA6562 an excellent choice for all types of high- speed CAN networks, especially in nodes requiring low-power mode with wake-up capability via the CAN bus.

The ATA6562 is automotive Grade 0 qualified for an ambient temperature range from -40° to 150°C.

To purchase the ATA6562 or obtain additional information, please contact any Microchip sales representative or authorized worldwide distributor.

Fully ISO 11898-2, ISO 11898-5, ISO 11898-2: 2016 and SAE J2962-2 compliant

ISO 26262 FuSa Ready

CAN FD - communication speed up to 5Mbit/s

Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)

Differential receiver with wide common mode range

Silent mode (receive only)

Remote wake-up capability via CAN bus - Wake-Up on Pattern (WUP), as Specified in ISO 11898-2: 2016, 3.8 μs Activity Filter Time

Functional behavior predictable under all supply conditions

Transceiver disengages from the bus when not powered up

RXD recessive clamping detection

High electrostatic discharge (ESD) handling capability on the bus pins

Bus pins protected against transients in automotive environments

Transmit data (TXD) dominant time-out function

Undervoltage detection on VCC

CANH/CANL short-circuit and overtemperature protected

AEC-Q100 and AEC-Q006 qualified

Packages: SOIC8, VDFN8 with wettable flanks (Moisture Sensitivity Level 1)

Power-on Reset (POR)
Voltage monitoring (VCC)
Overtemperature detection
RXD Recessive Clamp detection
TXD Dominant Timeout
