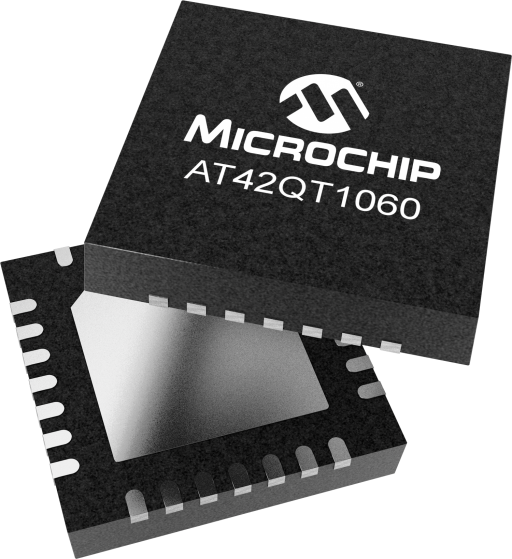

Microchip AT42QT1060-MMUR

Manufacturer No:

AT42QT1060-MMUR

Manufacturer:

Microchip

Package:

28-VFQFN Exposed Pad

Description:

AT42QT1060

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT42QT1060-MMUR information

Microchip AT42QT1060-MMUR technical specifications, attributes, parameters and parts with similar specifications to Microchip AT42QT1060-MMUR.

Type
Parameter

Product Type
Proximity/Keys/Slider

Input Channels
6

Number of Keys Max
6

Slider
No

Proximity detection
No

Output Channels
7

Measurement Principle
E-Field

Report Rate (pps)
0

Number of Touches
0

Power Modes
0

Interface
I2C and Discrete

I/O, LED Drivers
7

Other Features
Signal Guard/Driven Shield

Temp Range
0°C to 70°C

Voltage Min. (V)
1.80

Voltage Max. (V)
5.50

Download datasheets and manufacturer documentation for Microchip AT42QT1060-MMUR.

Sensor IC designed to simplify and speed the development of mobile and other applications. It provides all of the functions needed to create a fully functional touch interface for mobile phones and handheld devices. Based on Microchip QTouch technology, this IC integrates the required signal processing and input/output functions into a 28-pin, 4mm by 4mm RoHS compliant package. It includes a guard channel to prevent false detections by other keys. Its LEDs are directly powered by the IC, eliminating the need for an external LED controller.

Configurations: Can be configured as a combination of keys and input/output lines
Number of QTouch® Keys: Two to six
Number of I/O Lines: Seven, configurable for input or output, with PWM control for LED driving
Technology: Patented spread-spectrum charge-transfer (direct mode)
Key Outline Sizes: 6 mm x 6 mm or larger (panel thickness dependent); widely different sizes and shapes possible
Layers Required: One
Electrode Materials: Etched copper, silver, carbon, Indium Tin Oxide (ITO)
Panel Materials: Plastic, glass, composites, painted surfaces (low particle density metallic paints possible)
Up to 10 mm glass (electrode size dependent)
Up to 5 mm plastic (electrode size dependent)
Key Sensitivity: Individually settable via simple commands over serial interface
Interface: I2C-compatible slave mode (100 kHz). Discrete detection outputs
Signal Processing:
Self-calibration
Auto drift compensation
Noise filtering
Adjacent Key Suppression® (AKS®)
Applications: Mobile appliances
Power: 1.8 V to 5.5 V
Package: 28-pin 4 x 4 mm QFN RoHS compliant IC

User Guide
