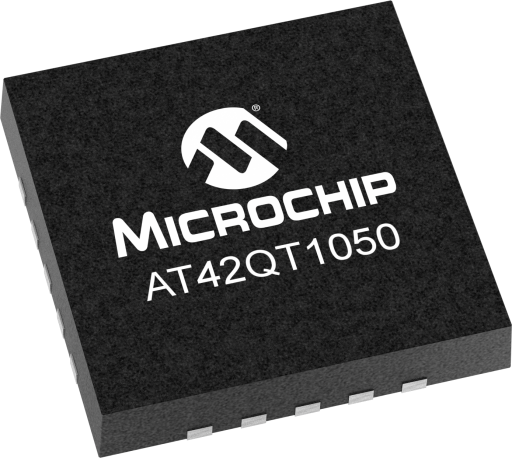

Microchip AT42QT1050-MMH

Manufacturer No:

AT42QT1050-MMH

Manufacturer:

Microchip

Package:

20-VFQFN Exposed Pad

Description:

AT42QT1050

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AT42QT1050-MMH information

Microchip AT42QT1050-MMH technical specifications, attributes, parameters and parts with similar specifications to Microchip AT42QT1050-MMH.

Type
Parameter

Product Type
Proximity/Keys/Slider

Input Channels
5

Number of Keys Max
5

Slider
No

Proximity detection
No

Output Channels
0

Measurement Principle
E-Field

Report Rate (pps)
0

Number of Touches
0

Power Modes
0

Interface
I2C

I/O, LED Drivers
0

Other Features
Signal Guard/Driven Shield

Temp Range
0°C to 70°C

Voltage Min. (V)
1.80

Voltage Max. (V)
5.50

Download datasheets and manufacturer documentation for Microchip AT42QT1050-MMH.

The Atmel(R) AT42QT1050 is a QTouchADC(TM) sensor driver. The device can sense from one to five keys, dependent on mode. The QT1050 includes all signal processing functions necessary to provide stable sensing under a wide variety of changing conditions, and the outputs are fully debounced. Only a few external parts are required for operation and no external Cs capacitors are required. The QT1050 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1050 uses a QTouchADC method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

Configurations: Comms mode
Number of Keys: 1 to 5 keys (or 1 to 4 keys plus a Guard Channel)
Technology: Patented spread-spectrum QTouchADC charge-transfer
Key Outline Sizes: 6 mm × 6 mm or larger (panel thickness dependent); widely different sizes and shapes possible
Layers Required: One
Electrode Materials: Etched copper; Silver; Carbon; Indium Tin Oxide (ITO)
Panel Materials: Plastic; Glass; Composites; Painted surfaces (low particle density metallic paints possible)
Up to 10 mm glass (electrode size dependent)
Up to 5 mm plastic (electrode size dependent)
Key Sensitivity: Individually settable using simple commands over I2C interface
Interface: I2C slave mode (400 kHz). Discrete detection outputs
Self-calibration
Auto-drift compensation
Noise filtering
Adjacent Key Suppression® (AKS®) – up to three groups possible
Moisture Tolerance: Increased moisture tolerance based on hardware design and firmware tuning
Power Saving: Low Power (LP) mode supports both Low Power and Deep Sleep modes
Power: 1.8 V to 5.5 V
12-ball WLCSP RoHS-compliant IC
20-pin VQFN RoHS-compliant IC
