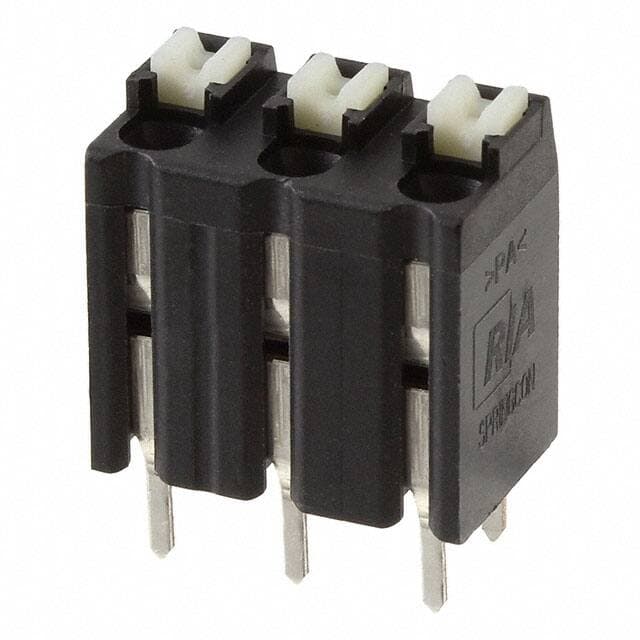

METZ CONNECT USA Inc. AST2150302
Manufacturer No:
AST2150302
Manufacturer:
Package:
Description:
0.197 5.00mm Black Bulk Polyamide (PA6T), Nylon 6T Through Hole Vertical with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-28 AWG
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AST2150302 information
METZ CONNECT USA Inc. AST2150302 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. AST2150302.
- Type
- Parameter
- Factory Lead Time
- 13 Weeks
- Contact Material
- Copper
- Contact Plating
- Tin
- Mount
- PCB
- Mounting Type
- Through Hole
- Housing Material
- Polyamide (PA6T), Nylon 6T
- Contact Material - Plating
- Copper Alloy - Tin Plated
- Clamp Material - Plating
- Steel
- Operating Temperature
- -40°C~105°C
- Packaging
- Bulk
- Feature
- Push Button Actuated
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Termination
- Solder
- Connector Type
- PCB, Terminal Block
- Number of Positions
- 3
- Color
- Black
- Pitch
- 0.197 5.00mm
- Orientation
- Straight
- Depth
- 8.5mm
- Current Rating
- 10A
- Voltage - Rated AC
- 300V
- Wire Gauge
- 16-28 AWG
- Max Current Rating
- 12A
- Wire/Cable Gauge
- 16 AWG
- Mating Orientation
- Vertical with Board
- Wire Termination
- Screwless - Spring Cage, Tension Clamp
- Length
- 13.5mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. AST2150302.
AST2150302 Overview
Currently, it is packaged in PCB, Terminal Block.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A number of features make the Push Button Actuated feature more powerful.PCB represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
AST2150302 Features
AST2150302 Applications
There are a lot of METZ CONNECT USA Inc.
AST2150302 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
