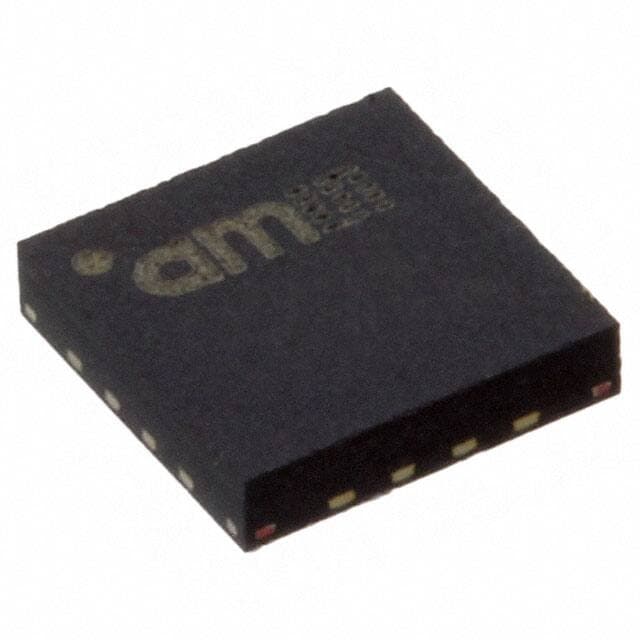

OSRAM AS5055A-BQFM

Manufacturer No:

AS5055A-BQFM

Manufacturer:

OSRAM

Package:

16-VQFN Exposed Pad

Description:

Description: AS5055A Position Sensor

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS5055A-BQFM information

OSRAM AS5055A-BQFM technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS5055A-BQFM.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
AMS AG

Reach Compliance Code
compliant

Additional Feature
IT ALSO HAS 3-WIRE INTERFACE

Body Breadth
4 mm

Body Height
0.9 mm

Body Length or Diameter
4 mm

JESD-609 Code
e3

Mounting Feature
SURFACE MOUNT

Operating Current-Max
8.5 mA

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Output Interface Type
4-WIRE INTERFACE

Output Range
4.5-5.4V

Output Type
DIGITAL VOLTAGE

Package Shape/Style
SQUARE

Sensors/Transducers Type
ROTARY POSITION SENSOR,HALL EFFECT

Supply Voltage-Max
3.6 V

Supply Voltage-Min
3 V

Surface Mount
YES

Terminal Finish
TIN

Termination Type
SOLDER

Download datasheets and manufacturer documentation for OSRAM AS5055A-BQFM.

Datasheets:

ams-as5055aqfekab-datasheets-8486.pdf

ams-as5055abqfm-datasheets-2316.pdf

ams-as5055abqfm-datasheets-2317.pdf

AS5055A-BQFM Overview

The linear position measuring sensors are put into 16-VQFN Exposed Pad packages to protect the devices from damage. This electronic component is packaged in the Tape & Reel (TR).

AS5055A-BQFM Features

Supply Voltage: 3V~3.6V
Operating Temperature: -40°C~85°C
Mount: Surface Mount
Package / Case: 16-VQFN Exposed Pad
Mounting Type: Surface Mount

AS5055A-BQFM Applications

There are a lot of ams
AS5055A-BQFM Angle & Linear Position Measuring Sensors applications.

Joysticks
Control elements
Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
