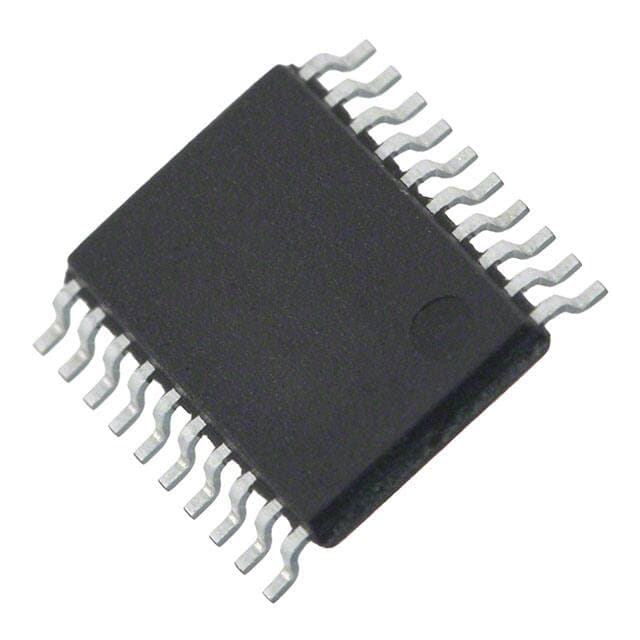

OSRAM AS1530

Manufacturer No:

AS1530

Manufacturer:

OSRAM

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

12 Bit ADC 20-TSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS1530 information

OSRAM AS1530 technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS1530.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-TSSOP (0.173, 4.40mm Width)

Number of Pins
20

Operating Temperature
-40°C~85°C

Packaging
Tube

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Power Dissipation
559mW

Reach Compliance Code
unknown

Configuration
S/H-ADC

Number of Channels
8

Interface
SPI, Serial

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Nominal Supply Current
3.3mA

Number of Bits
12

Input Type
Differential, Pseudo-Differential, Single Ended

Architecture
SAR

Number of Inputs
4, 8

Supply Type
Single

Reference Type
External, Internal

Data Interface
SPI

Resolution
1.5 B

Sampling Rate
400 sps

Sampling Rate (Per Second)
400k

Power Consumption
559mW

Number of A/D Converters
1

Conversion Rate
400 ksps

Ratio - S/H:ADC
1:1

Signal to Noise Ratio (SNR)
70 dB

Differential Nonlinearity
1 LSB

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OSRAM AS1530.

Datasheets:

ams-as1530t-datasheets-0957.pdf

AS1530 Overview

The analogue to digital converter is designed with 12 Bits.The AD converter is embedded in the 20-TSSOP (0.173, 4.40mm Width) package.The ADC converter is packaged in the way of Tube.This electronic AD converter is mounted in the way of Surface Mount.When operating, analogue to digital converter's operating temperature should be kept at -40°C~85°C.The number of samples of audio recorded every second is 400k Hz.The input type of this electronic AD converter is Differential, Pseudo-Differential, Single Ended.There are External, Internal reference types differentiated on the way by which they are garbage collected. This electronic digital converter is configured in such a way that S/H-ADC.The architecture that analogue to digital converter's core adopts is SAR.There are 20 pins, which are pronged contacts as part of a signal interface in a computer or other communications device. The supply/analog voltage of this electrical ADC converter is 5V, which converts alternative voltage (AC voltage) to regulated direct voltage (DC voltage) and provide regulated DC power in order to drive a load.The number of pixels of this electrical AD converter is 1.5 B, which is on a display or in a camera sensor (specifically in a digital image).This electrical digital converter is lead free, which means made without lead, or has no lead added to it.Single can be used to categorize supply types.The ADC converter operates with the maximal supply voltage of 5.5V.4, 8 inputs are employed.It operates with the minimal supply voltage of 4.5V. The maximal heat (energy loss or waste) that this electronic or electrical ADC converter produces is 559mW.The number of channels is growing strong/weak: 8.The conversion rate of this electrical AD converter is calculated as 400 ksps.There are 1 A/D converters, which are used to convert an analog signal like voltage to digital form so that it can be read and processed by a microcontroller.

AS1530 Features

Minimal supply voltage of 4.5V

AS1530 Applications

There are a lot of ams
AS1530 ADC applications.

Cell Phones
Digital Multimeters, PLC's (Programming Logic Controllers)
RADAR processing, digital oscilloscopes
CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
