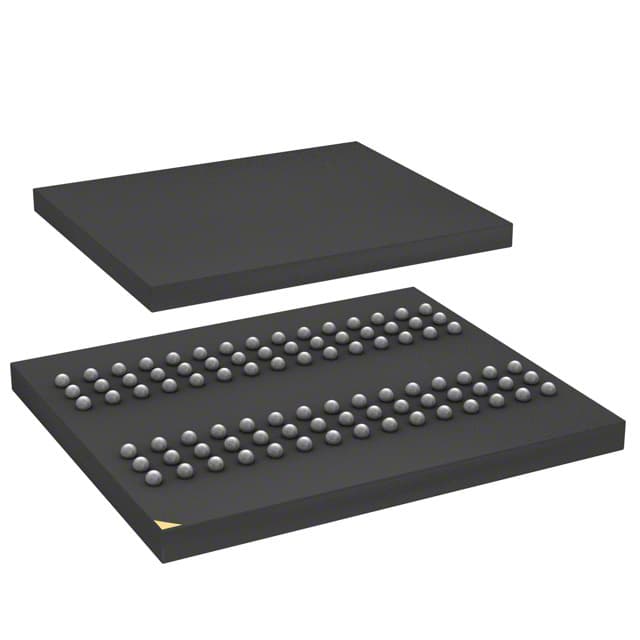

Alliance Memory AS4C4M32S-6BIN

Manufacturer No:

AS4C4M32S-6BIN

Manufacturer:

Alliance Memory

Package:

90-TFBGA

Description:

Memory IC 128 Mb kb 13mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS4C4M32S-6BIN information

Alliance Memory AS4C4M32S-6BIN technical specifications, attributes, parameters and parts with similar specifications to Alliance Memory AS4C4M32S-6BIN.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
90-TFBGA

Surface Mount
YES

Number of Pins
90

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
90

ECCN Code
EAR99

Additional Feature
AUTO/SELF REFRESH

HTS Code
8542.32.00.02

Technology
SDRAM

Voltage - Supply
3V~3.6V

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Memory Size
128Mb 4M x 32

Memory Type
Volatile

Clock Frequency
166MHz

Supply Current-Max
0.2mA

Access Time
5.4ns

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
32b

Organization
4MX32

Output Characteristics
3-STATE

Memory Width
32

Write Cycle Time - Word, Page
2ns

Address Bus Width
12b

Density
128 Mb

Standby Current-Max
0.003A

I/O Type
COMMON

Refresh Cycles
4096

Sequential Burst Length
1248FP

Interleaved Burst Length
1248

Length
13mm

Height Seated (Max)
1.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Alliance Memory AS4C4M32S-6BIN.

AS4C4M32S-6BIN Overview

As far as its memory type goes, it falls into the Volatile category. You can get memory ics in a Tray case. 90-TFBGA case encloses it. There is 128Mb 4M x 32 of memory on the chip. The device uses a mainstream DRAM-format memory. Suitable for use in a wide range of demanding applications, this device offers an extended operating temperature range of -40°C~85°C TA. There is a voltage range of 3V~3.6V for the supply voltage. It is recommended that the mounting type be Surface Mount. There are 90 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 3.3V volt power supply in order to operate properly. It has a clock frequency of 166MHz. In this ic memory chip, there is an 90-pin package that encloses the device. This memory chip has an operating supply voltage of 3.3V. Despite all its benefits, this memory chip also offers AUTO/SELF REFRESH for improved system performance. Using 1 ports, a single memory address can be read and/or written. A memory map of COMMON bits has been added to the I/O port addresses of this device. The device is able to run from a max supply current of 0.2mA , so it can be used in any environment.

AS4C4M32S-6BIN Features

Package / Case: 90-TFBGA
90 Pins
Operating Supply Voltage:3.3V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

AS4C4M32S-6BIN Applications

There are a lot of Alliance Memory, Inc.
AS4C4M32S-6BIN Memory applications.

multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
