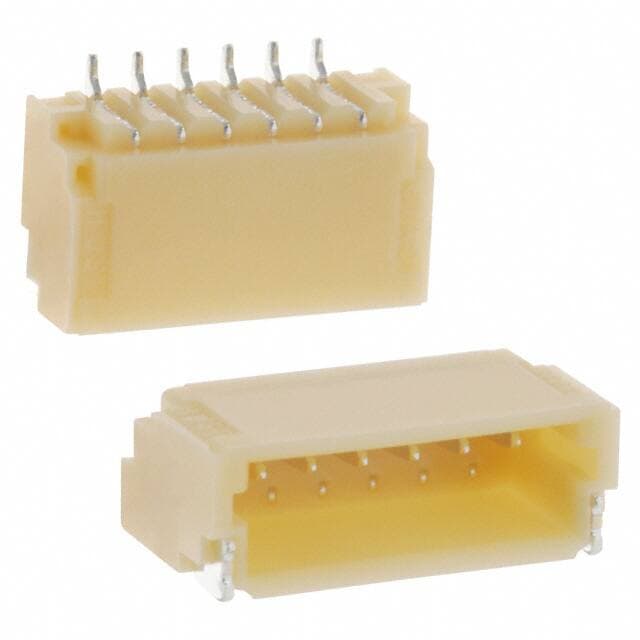

JST SM06B-SRSS-TB(LF)(SN)
Manufacturer No:
SM06B-SRSS-TB(LF)(SN)
Manufacturer:
Package:
Description:
SR Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.114 2.90mm Height
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 0.770000 | $ 0.770000 |
| 100 | $ 0.580000 | $ 58.000000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
SM06B-SRSS-TB(LF)(SN) information
JST SM06B-SRSS-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM06B-SRSS-TB(LF)(SN).
| Type | Parameter |
|---|---|
| Factory Lead Time | 16 Weeks |
| Contact Material | Copper Alloy |
| Mount | Surface Mount |
| Mounting Type | Surface Mount, Right Angle |
| Number of Pins | 8 |
| Contact Shape | Square |
| Insulation Material | Polyamide (PA), Nylon |
| Material | Polyamide |
| Housing Material | Nylon |
| Operating Temperature | -25°C~85°C |
| Packaging | Tape & Reel (TR) |
| Series | SR |
| Published | 2002 |
| JESD-609 Code | e2 |
| Feature | Solder Retention |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Solder |
| ECCN Code | EAR99 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Gender | Male |
| Type | Parameter |
|---|---|
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Contact Type | Male Pin |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Total Number of Contacts | 6 |
| Orientation | Right Angle |
| Depth | 4.95mm |
| Insulation Height | 0.114 2.90mm |
| Style | Board to Cable/Wire |
| Number of Positions Loaded | All |
| Current Rating | 1A |
| Pitch - Mating | 0.039 1.00mm |
| Voltage - Rated AC | 50V |
| Shrouding | Shrouded - 4 Wall |
| Lead Pitch | 1mm |
| UL Flammability Code | 94V-0 |
| Housing Color | Natural |
| Contact Resistance | 20mOhm |
