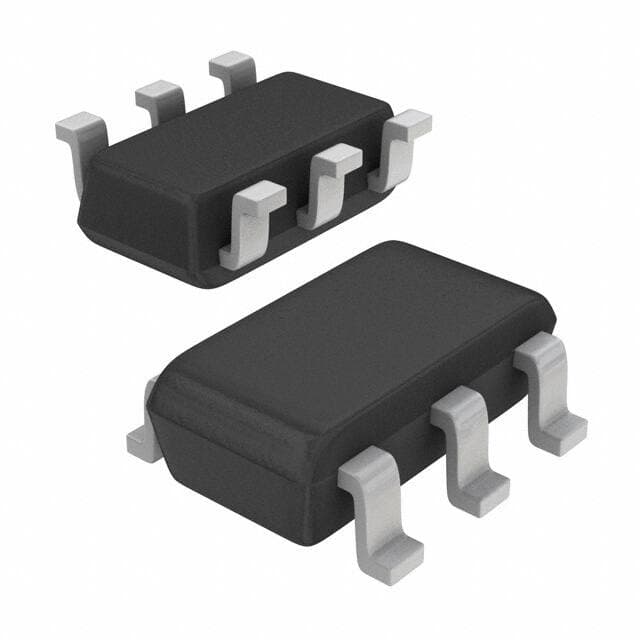

DIODES AP3036BKTR-G1
DIODES AP3036BKTR-G1

DIODES AP3036BKTR-G1

Manufacturer No:

AP3036BKTR-G1

Manufacturer:

DIODES

Package:

SOT-23-6

Description:

Frequency 0.95mm Tin PMIC 6 Pin 3V SOT-23-6

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AP3036BKTR-G1 information

DIODES AP3036BKTR-G1 technical specifications, attributes, parameters and parts with similar specifications to DIODES AP3036BKTR-G1.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-23-6
  • Number of Pins
  • 6
  • Manufacturer Package Identifier
  • SOT26 (SC74R)
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2012
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Type
  • DC DC Regulator
  • Applications
  • Backlight
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Number of Functions
  • 1
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 0.95mm
  • Number of Outputs
  • 1
  • Output Voltage
  • 30V
  • Max Supply Voltage
  • 16V
  • Min Supply Voltage
  • 2.5V
  • Nominal Supply Current
  • 3.1mA
  • Topology
  • Step-Up (Boost)
  • Min Input Voltage
  • 2.5V
  • Max Input Voltage
  • 16V
  • Output Current per Channel
  • 550mA
  • Current - Output / Channel
  • 550mA Switch
  • Internal Switch(s)
  • Yes
  • Dimming
  • PWM
  • Number of Segments
  • 6
  • Max Junction Temperature (Tj)
  • 150°C
  • Switching Frequency
  • 1MHz
  • Multiplexed Display Capability
  • NO
  • Nominal Input Voltage (DC)
  • 3V
  • Height
  • 1.4mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for DIODES AP3036BKTR-G1.

Environmental Information:

PCN Design/Specification:

AP3036BKTR-G1 Overview


Space is saved using its SOT-23-6 package. LED drivers have a total of 1 outputs that are used in the design of the drivers.The led light driver is mounted using Surface Mount.When it emerges as a DC DC Regulator, it performs extremely well and is highly reliable.It is capable of operating at a temperature of -40°C~85°C TA. Backlight provides many benefits.In this case, it uses 6 terminations.There are 6 pins on its base.There are estimated to be 6 segments.There is a device mounted on the Surface Mount.In this case, 16V is acceptable.A minimal input voltage of 2.5V is required for it to operate.As a result, it runs at a minimal voltage of 2.5V in order to achieve the best efficiency.When the maximum supply current is allowed, the value reaches 16V.This electronic component can fully perform its functions when the switching frequency is kept at 1MHz.This device produces a voltage of 30V as its output.The output type of this device is Frequency.
