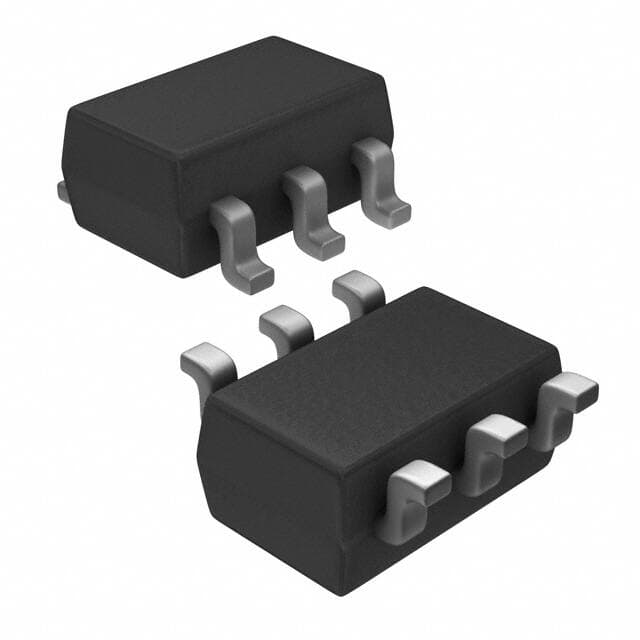

AOS AO6420

Manufacturer No:

AO6420

Manufacturer:

AOS

Package:

SC-74, SOT-457

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 60m ? @ 4.2A, 10V ±20V 540pF @ 30V 11.5nC @ 10V 60V SC-74, SOT-457

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AO6420 information

AOS AO6420 technical specifications, attributes, parameters and parts with similar specifications to AOS AO6420.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-74, SOT-457

Number of Pins
6

Transistor Element Material
SILICON

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Technology
MOSFET (Metal Oxide)

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
6

Number of Elements
1

Configuration
SINGLE WITH BUILT-IN DIODE

Power Dissipation-Max
2W Ta

Operating Mode
ENHANCEMENT MODE

Power Dissipation
2W

Transistor Application
SWITCHING

Rds On (Max) @ Id, Vgs
60m ? @ 4.2A, 10V

Vgs(th) (Max) @ Id
3V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
540pF @ 30V

Current - Continuous Drain (Id) @ 25°C
4.2A Ta

Gate Charge (Qg) (Max) @ Vgs
11.5nC @ 10V

Drain to Source Voltage (Vdss)
60V

Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V

Vgs (Max)
±20V

Continuous Drain Current (ID)
4.2A

Gate to Source Voltage (Vgs)
20V

Pulsed Drain Current-Max (IDM)
20A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AOS AO6420.

AO6420 Overview

An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 540pF @ 30V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 4.2A continuous drain current (ID).Peak drain current is 20A, which is the maximum pulsed drain current.An FET transistor's gate-source voltage, VGS, indicates how much voltage is applied across the transistor's gate-source terminal and it can range from 20V to 1.For this transistor to work, a voltage 60V is required between drain and source (Vdss).Using drive voltage (4.5V 10V), this device contributes to a reduction in overall power consumption.

AO6420 Features

a continuous drain current (ID) of 4.2A
based on its rated peak drain current 20A.
a 60V drain to source voltage (Vdss)

AO6420 Applications

There are a lot of Alpha & Omega Semiconductor Inc.
AO6420 applications of single MOSFETs transistors.

AC-DC Power Supply
Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
