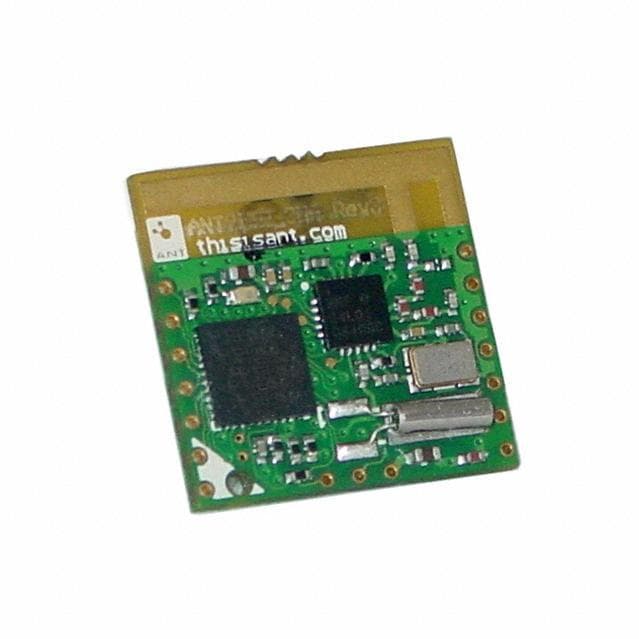

Dynastream Innovations ANT11TS33M4IB

Manufacturer No:

ANT11TS33M4IB

Manufacturer:

Dynastream Innovations

Package:

SMD/SMT

Description:

2.4GHz 1 Mbps SMD/SMT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT11TS33M4IB information

Dynastream Innovations ANT11TS33M4IB technical specifications, attributes, parameters and parts with similar specifications to Dynastream Innovations ANT11TS33M4IB.

Type
Parameter

Mount
Surface Mount

Package / Case
SMD/SMT

Number of Pins
17

Published
2015

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Depth
20mm

Frequency
2.4GHz

Operating Supply Voltage
3V

Max Supply Voltage
3.6V

Min Supply Voltage
2V

Data Rate
1 Mbps

Current - Receiving
19mA

Current - Transmitting
13mA

Sensitivity (dBm)
-85 dBm

Length
20mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Dynastream Innovations ANT11TS33M4IB.

ANT11TS33M4IB Overview

3.6V is a Transceiver RF's maximum acceptable voltage for the supply.To operate the high power RF Transceiver, 17 pins are required.A RF Transceiver Module operates at a frequency of 2.4GHz.There are many applications for this Transceiver , since it is Surface Mount mounted.

ANT11TS33M4IB Features

3.6V volts
17 pins

ANT11TS33M4IB Applications

There are a lot of Dynastream Innovations
ANT11TS33M4IB RF Transceiver Modules applications.

Low Noise Amplifier (LNA)
Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
