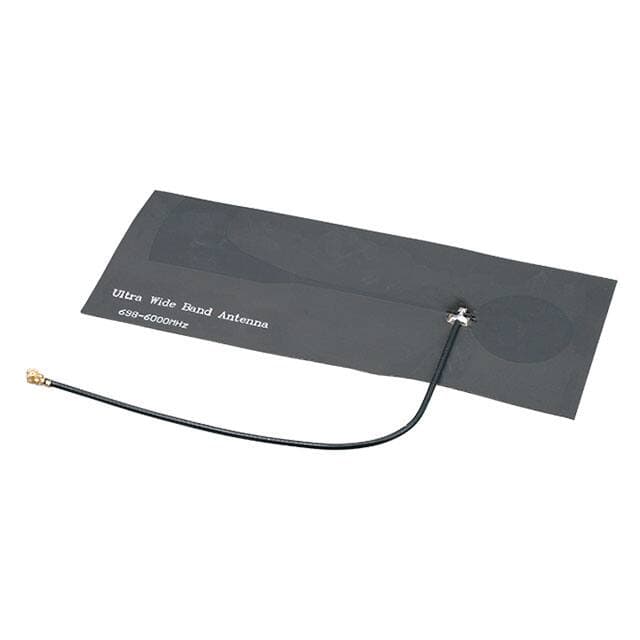

Linx Technologies Inc. ANT-LPX-FPC-100

Manufacturer No:

ANT-LPX-FPC-100

Manufacturer:

Package:

Description:

9 Bands Flat Patch Wide B Adhesive IPEX MHF1 (U.FL) 750MHz 876MHz 1.58GHz 1.96GHz 2.35GHz 2.44GHz 2.59GHz 3.55GHz 5.5GHz 3.6dBi, 4.4dBi, 5.3dBi, 4.9dBi, 3.1dBi, 3.4dBi, 4.4dBi, 6.7dBi 0.01 0.20mm General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-LPX-FPC-100 information

Linx Technologies Inc. ANT-LPX-FPC-100 technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-LPX-FPC-100.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Adhesive

Series
FPC

Feature
Cable - 100mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IPEX MHF1 (U.FL)

Applications
General Purpose

Power - Max
2W

Gain
3.6dBi, 4.4dBi, 5.3dBi, 4.9dBi, 3.1dBi, 3.4dBi, 4.4dBi, 6.7dBi

Frequency Range
696MHz~960MHz 1.553GHz~1.609GHz 1.71GHz~2.2GHz 2.3GHz~2.4GHz 2.4GHz~2.485GHz 2.496GHz~2.69GHz 3.3GHz~3.8GHz 5.15GHz~5.85GHz

RF Family/Standard
Cellular, General ISM, Navigation, WiFi

Antenna Type
Flat Patch

VSWR
3.9, 2, 2.8, 3.3, 2.8, 2.5, 3.1, 3.6

Number of Bands
9

Frequency Group
Wide B

Frequency (Center/Band)
750MHz 876MHz 1.58GHz 1.96GHz 2.35GHz 2.44GHz 2.59GHz 3.55GHz 5.5GHz

Return Loss
-4.6dB, -9.5dB, -6.5dB, -5.4dB, -6.5dB, -7.4dB, -5.8dB, -5.0dB

Height (Max)
0.01 0.20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-LPX-FPC-100.

Datasheets:

linxtechnologiesinc-antlpxfpc100-datasheets-7186.pdf

linxtechnologiesinc-antlpxfpc100-datasheets-7187.pdf

ANT-LPX-FPC-100 Overview

RF Antennas is made easier with Adhesive.Among the FPC series of Antenna RFs, it is a camera.

ANT-LPX-FPC-100 Features

With Adhesive
FPC series

ANT-LPX-FPC-100 Applications

There are a lot of Linx Technologies Inc.
ANT-LPX-FPC-100 RF Antennas applications.

Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
